Name: DAC0808 Converter 8-Bit Analog to Digital
Brand: My Store
Price: 100.00 PKR
Availability: InStock

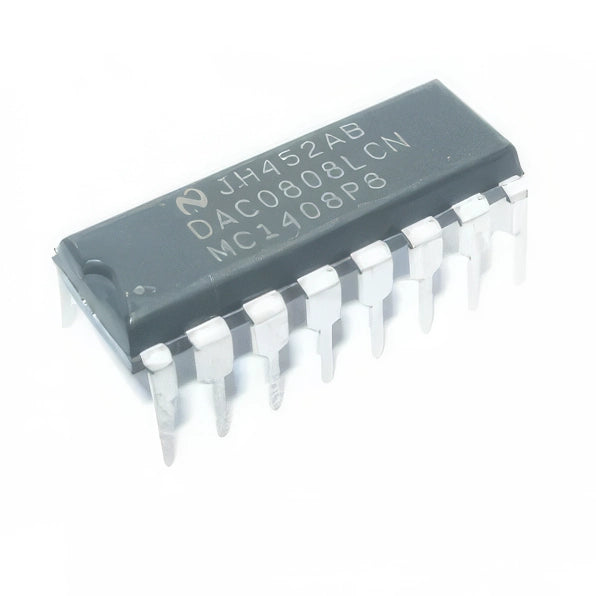

DAC0808 Converter 8-Bit Analog to Digital

The DAC0808 Converter is an 8-bit monolithic digital-to-analog converter (DAC) featuring a full-scale output current settling time of 150 ns while dissipating only 33 mW with ±5V supplies. No reference current (IREF) trimming is required for most applications since the full-scale output current is typically ±1 LSB of 255 IREF/256....

Rs.100.00

Brand : My Store

Collection : Analog and Digital Converters

SKU :

Availability :

Translation missing: en.products.product.product_variants

Quantity

size chart

The DAC0808 Converter is an 8-bit monolithic digital-to-analog converter (DAC) featuring a full-scale output current settling time of 150 ns while dissipating only 33 mW with ±5V supplies.

No reference current (I_REF) trimming is required for most applications since the full-scale output current is typically ±1 LSB of 255 I_REF/256. Relative accuracies of better than ±0.19% assure 8-bit monotonicity and linearity while zero level output current of less than 4 µA provides 8-bit zero accuracies for I_REF>=2 mA.

The power supply currents of the DAC0808 are independent of bit codes and exhibit essentially constant device characteristics over the entire supply voltage range.
