Introducing our cutting-edge Digital and Multi-Meters collection, where precision meets innovation to empower both professionals and enthusiasts in their electrical measurements. Whether you’re an electrician, technician, engineer, or a hobbyist, our range of Digital and Multi-Meters is designed to cater to your diverse needs with accuracy and convenience.
Explore the future of electrical testing with our digital meters, featuring advanced digital displays that provide clear and precise readings at a glance. Say goodbye to analog uncertainty, and embrace the reliability of digital technology for measuring voltage, current, resistance, and more. The intuitive interface ensures ease of use, allowing you to focus on your work without unnecessary complexities.
Digital and Multi-Meters
Showing all 15 results
-
Digital and Multi-Meters
UT107 HANDHELD AUTOMOTIVE MULTIPURPOSE METER
Display Count: 2000
Manual Range: √
Battery Test: 12V ±(3%+5)
Duty Cycle: 1%-90% ±(4%+5)
Diode: √
Continuity Buzzer: √
Low Battery Indication: √
Data Hold: √
Input Protection: √
Input Impedance for DCV: Around 10MΩ
Dwell: 4CYL/6CYL/8CYL ±(3%+5)
Tach: 4CYL/6CYL/8CYL ±(3%+5)SKU: n/a -
Digital and Multi-Meters
UT118B PEN TYPE DIGITAL MULTIMETER
-
Measurement CategoryCAT III
-
Test/Measurement FunctionsResistance, AC Voltage, DC Voltage, Capacitance, Diode Test
-
Number of Counts2999
-
Maximum Input Voltage600V
-
AC Voltage Range3V/30V/300V
-
Input Protection FeaturesDiode Bridge, Shunt Resistor, Thermistor (PTC)
-
DisplayDigital
-
Form FactorHandheld
-
Protection Against SolidsNot Protected
-
FeaturesAuto-Ranging, Backlight, Auto Power Off, Data Hold, Min-Max Value Mode
-
DC Voltage Range3V/30V/300V
-
Resistance Range300Ω/3kΩ/30kΩ/300kΩ/3MΩ/30MΩ
-
Protection Against LiquidsNot Protected
SKU: n/a -
-
-
Digital and Multi-Meters

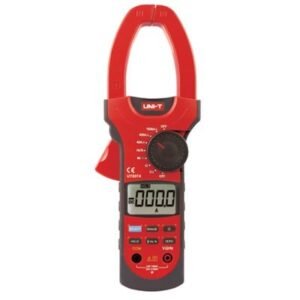

UT207A 1000A DIGITAL CLAMP METER
1. 1000A AC/DC measurement with Hall-effect sensor, 3/s sampling rate
2. Auto and manual ranges selectable
3. Zeroing function in the relative mode
4. LCD backlight
5. Data hold
6. Auto power off and low battery indication
7. 1m drop proof
8. Complies with CE (European Union) directivesSKU: n/a -
Digital and Multi-Meters

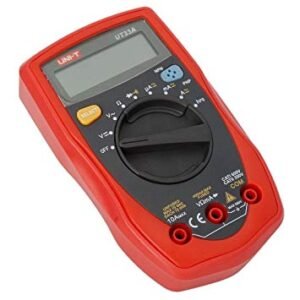

UT33A DIGITAL MULTIMETER
UNI-T UT33A Handheld LCD Digital Multimeter Auto Range AC/DC Voltage DC Current Resistance Tester red+black
Color: red+black
DC Voltage: 400mV/4V/40V/400V/500V +/- (0.8%+2)
AC Voltage: 4V/40V/400V/500V +/- (1.2%+3)
DC Current: 400mA/4000¦ÌA/40mA/400mA/4A/10A +/- (1%+2)
Resistance: 400W/4kW/40kW/400kW/4MW/40MW +/- (1%+2)
Diode: Yes
Continuity Buzzer: Yes
Square Wave Output: Yes
Data Hold: Yes
Display Backlight: Yes
Low Battery Display: Yes
Input Impedance for DC Voltage Measurement: Around 10MW
Max. Display: 3999
Power: 1.5V Battery (AAAx2) Not included
LCD Size: 48 x 16mm
Product Net Weight: Around 156g
Product Size: 130 x 73.5 x 35mm
Package List
1 x UT33A Digital Multimeter
2 x Test Lead
1 x User Manual
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm.SKU: n/a -
Digital and Multi-Meters
UT33C DIGITAL MULTIMETER
Basic Functions Range Best Accuracy
DC Voltage 200mV/2000mV/20V/200V/500V (0.5%+2)
AC Voltage 200V/500V (1.2%+10)
DC Current 2000mA/20mA/200mA/10A (1%+2)
Resistance 200W/2000W/20kW/200kW/20MW (0.8%+2)
Temperature (°C) -40°C ~ 1000°C (1%+3)
Temperature (°F) -40°F ~ 1832°F (1%+4)
Special Functions
Diode
Continuity Buzzer
Data Hold
Display Backlight
Low Battery Display
Input Impedance for DC
Voltage Measurement Around 10MW
Max. Display 1999SKU: n/a -
Digital and Multi-Meters

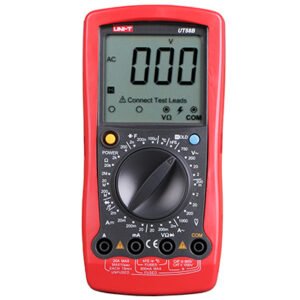

UT58B GENERAL DIGITAL MULTIMETER
1. 2000 display count, update 2~3 times/s
2. Function symbols and test lead connection indication
3. Capacitance and transistor measurement
4. Overload protection
5. Temperature measurement mode, with K-type temperature probe
6. Diode and continuity buzzer; auto power off
7. Data hold
8. 20A AC/DC current measurement
SKU: n/a -
Digital and Multi-Meters

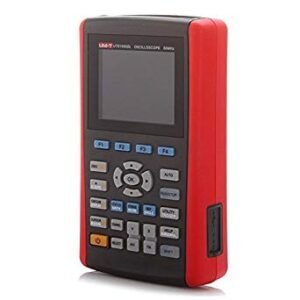

UTD1050DL HANDHELD DIGITAL STORAGE OSCILLOSCOPE 50MHZ
UNI-T UTD1050DL is a dual channel lightweight, handheld oscilloscope with 50 MHz bandwidth and 250 MS/s sample rate. UNI-T UTD1050DL handheld digital oscilloscope also performs multimeter measuring functions: AC/DC voltage and current, resistance, capacity, diode and continuity tests.
Product Features:
1、 Fully Auto Scale; Vertical Scale and Timebase automatically adjusted with the signal and without any manual interference;
2、 Unique and powerful Auto Setup, quick and accurate to set up for signals with any DC component;
3、 Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div;
4、 Isolated USB for much safer communication;
5、 White and black display for your option, perfect for use outdoors with strong light;
Channels:2
Bandwidth:50MHz
Sample Rate:250MS/s
Rise Time:≤7ns
Memory Depth:12kpts
Vertical Sensitivity:5mV/div～20V/div
Timebase Range:5ns/div～50s/div
Storage:Bitmap, Setup, Waveform
Trigger Modes:Edge, Pulse, Video, Slope
Interface:Mini USB
Multimeter Specifications
DC Voltage (V):400.0mV/ 4.000V/ 40.00V/ 400.0V
AC Voltage (V):400.0mV/ 4.000V/ 40.00V/ 400.0V
DC Current (A)(External Convertor):400.0μA/ 4000μA;40.0mA/ 400mA;4A
AC Current (A)(45Hz～400Hz)(External Convertor):400.0μA/ 4000μA;40.0mA/ 400mA;4A
Resistance (Ω):400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ;40.00MΩ
Capacitance (F):51.20nF/512.0nF/5.120μF/51.20μF/100μF
Display Count:4000
Power:Lithium Battery: 7.4V 3600mAh;DC Adapter: 100～240V 50/60Hz input, 9V 4A Output
LCD Size:3.5 Inches 64K Color TFT LCD, 320×240SKU: n/a -
Digital and Multi-Meters

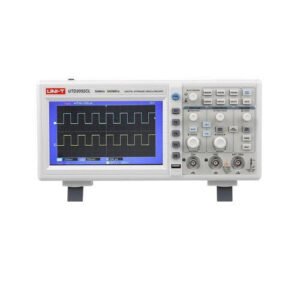

UTD2052CL DIGITAL STORAGE OSCILLOSCOPE 50MHZ
Specification UTD2052CL Channels 2 Bandwidth 50MHz Sample Rate 500MS/s Rise Time ≤7ns Memory Depth 25kpts Waveform Acquisition Rate ≥2000wfms/s Vertical Sensitivity 1mV/div~20V/div Timebase Range 5ns/div~50s/div Storage Setup,Wave,Bitmap Trigger Modes Edge, Pluse, Alternate Interface USB OTG SKU: n/a -
Digital and Multi-Meters

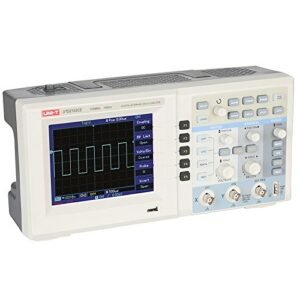

UTD2102CE DIGITAL STORAGE OSCILLOSCOPE 100MHZ
UNI-T UTD2102CE 100MHz 1GS/s Desktop Digital Storage Oscilloscope Detailed: 1. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device; 2. Storage of waveforms setups and interfaces waveforms and setups reproduction; 3. Automatic measurement of 28 waveform parameters; 4. Unique waveform recording and replay function; 5. Edge,Pluse,Video,Alternate trigger functions; 6. Unique Pass/Fail functions; 7. Multilingual menu displays.
SKU: n/a -
Digital and Multi-Meters

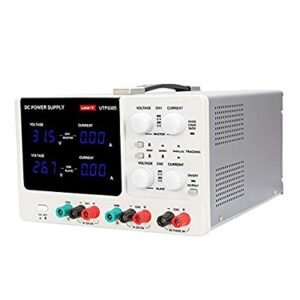

UTP3305 DC VOLTAGE POWER SUPPLY
- Dual channel, two circuits of adjustable output voltage 0~32V and one circuit of fixed voltage 5V.
- Master-slave tracking, constant voltage and current, I, II circuit can be used for master-slave tracking and used in parallel or in series.
- Forced ventilation, temperature control cooling system. When the temperature reaches 65℃, the device dissipates heat automatically.
- Display mode: LED digital tube display,can show voltage and current simultaneously.
- Low ripple, low noise.
- High regulation: 0.01%.
- Output ON/OFF control.
- Constant voltage and constant current operation.
- Optional European standard output terminal.
- Overload protection, reverse polarity protection.
SKU: n/a
