Explore a vast array of IC and IC sockets designed to power innovation in electronic applications. Our integrated circuits collection spans a wide spectrum of functions, from microcontrollers and microprocessors to amplifiers, sensors, and specialized ICs for communication and signal processing. Whether you’re working on IoT projects, robotics, or audio applications, our high-quality ICs are engineered to meet the demands of modern electronics.

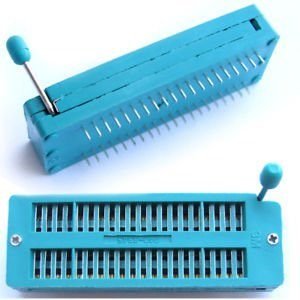

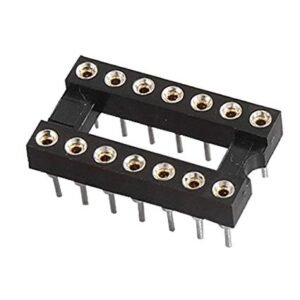

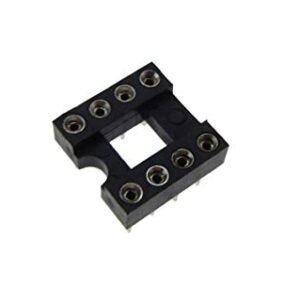

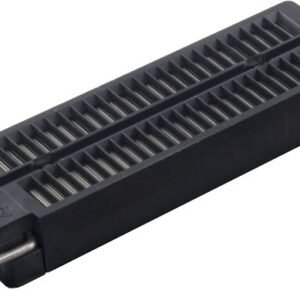

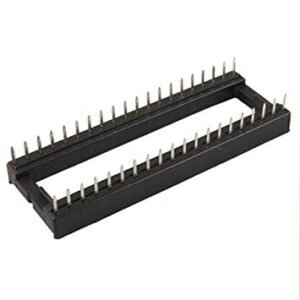

Facilitate easy integration, maintenance, and testing of integrated circuits with our range of IC sockets. Our sockets are meticulously designed to provide a secure and reliable connection, allowing for quick and hassle-free integrated circuit replacement or removal. Whether you are prototyping, testing, or optimizing your electronic circuits, our Integrated circuit sockets are essential tools for efficiency and flexibility.
IC and IC Sockets
Showing 1–15 of 59 results
-
IC and IC Sockets
5815M RDA5815M QFN-20 Signal IC
5815M IC RDA5815M QFN-20 Signal IC Specifications:
- Â Single-chip RF-to-baseband Satellite receiver
- Â CMOS Fully integrated RF front end
- Â Low noise and wide dynamic range zero-IF receiver
- Â Input frequency range: 250 to 2300 MHz
- Â Input signal level: -100 to 5 dBm
- Â More than 85dB gain control range
- Â Fully integrated PLL (dividers, charge pump, phase & frequency detectors, loop filters, etc.)
- Â Integrated RX VCO
- Â Integrated baseband LPF with selectable cut-off Applications frequency from 4MHz to 40MHz with 1MHz step
- Â Integrated LNA with RF AGCÂ Integrated reference oscillator (27MHz is the default)
- Â I2C bus interface
- Â Automatic gain control
-  0.11μm RF CMOS technology
- Â 3V to 3.6V operation
- Â power consumption less than 600mW
- Â Lower profile packages:
-  RDA5815M 5×5 mm QFN32 Pin assignment (32 pin QFN 5×5 mm)
- Â Set-top boxes
- Â Digital video recorders
- Â Digital television
- Â Satellite PC-TV
SKU: n/a -
IC and IC Sockets
74HC273 SMD SOP-20 IC
74HC273 SMD SOP-20 IC Features:
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption, 80-µA Maximum ICC
- Typical tpd = 12 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1-µA Maximum
- Contain Eight Flip-Flops With Single-Rail Outputs
- Direct Clear Input
SKU: n/a -
IC and IC Sockets
74HC4067D SOP-24 IC
74HC4067D SOP-24 IC Features
- Wide supply voltage range from 2.0 V to 10.0 V
- Input levels S0, S1, S2, S3 and E inputs:
- For 74HC4067: CMOS level
- CMOS low power dissipation
- High noise immunity
- Low ON resistance:
- 80 Ω (typical) at VCC = 4.5 V
- 70 Ω (typical) at VCC = 6.0 V
- 60 Ω (typical) at VCC = 9.0 V
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
SKU: n/a -
IC and IC Sockets
74HC595D 8-Bit SOP-16
74HC595D SOP-16 Features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- 8-bit serial input
- 8-bit serial or parallel output
- Storage register with 3-state outputs
- Shift register with direct clear
- 100 MHz (typical) shift out frequency
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
-
Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- For 74HC595: CMOS level
- For 74HCT595: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
SKU: n/a -
IC and IC Sockets
7LB179 SOP IC
Features:
• Designed for high-speed multipoint data transmission over long cables
• Operates with pulse widths as low as 30 ns
• Low supply current: 5 mA max
• Meets or exceeds the standard requirements ofANSI RS-485 and ISO 8482:1987(E)
• Common-mode voltage range of − 7 V to 12 V
• Positive-and negative-output current limiting
• Driver thermal shutdown protection
• Pin compatible with the SN75179BSKU: n/a -
IC and IC Sockets
CD14538BE DIP
- An unused RESET input should be tied to VDD
- Trigger and reset propagation delays independent of RX, CX
- Triggering from leading or trailing edge
- Separate resets, replaces CD4538B Type
- Wide range of output-pulse widths
- Schmitt-trigger input allows unlimited rise and fall times on +TR and -TR inputs
- 100% tested for maximum quiescent current at 20 V
- Standardized, symmetrical output characteristics
- Supply voltage range from 3 to 18V (at full operating temperature)
- 16 pin PDIP package, operating temperature range from -55 to 125°C
SKU: n/a -
IC and IC Sockets
CD14538BM SOP
CD14538BM SOP Features:
- Retriggerable/resettable capability
- Trigger and reset propagation delays independent of RX, CX
- Triggering from leading or trailing edge
- Q and Q\ buffered outputs available
- Separate resets
- Replaces CD4538B Type
- Wide range of output-pulse widths
- Schmitt-trigger input allows unlimited rise and fall times on +TR and -TR inputs
- 100% tested for maximum quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
SKU: n/a -
IC and IC Sockets
CD4093BE IC CMOS
The product consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH)
SKU: n/a -
IC and IC Sockets
CD4503BE IC CMOS
Technical Specifications:
- Logic Family: CMOS
- Number of Buffers: 6
- Supply Voltage Range: 3V to 15V
- High-Level Output Current (I_OH): -4 mA
- Low-Level Output Current (I_OL): 4 mA
- High-Level Input Voltage (V_IH): 0.7 V_DD min
- Low-Level Input Voltage (V_IL): 0.3 V_DD max
- Propagation Delay Time: 250 ns (typical) at V_DD = 10V
- Power Dissipation: 500 mW (max)
SKU: n/a -
IC and IC Sockets
CD4503BM SOP
The CD4503BM is a Hex Non-inverting Buffer with 3-state outputs having high sink and source-current capability. Two disable controls are provided, one of which controls four buffers and the other controls the remaining two buffers.
- 1 TTL-load output drive capability
- 2 Output-disable controls
- Pin compatible with industry types MM80C97, MC14503 and 340097
- 5/10/15V Parametric ratings
- Meets all requirements of JEDEC tentative standard no. 13B
- Green product and no Sib/Br
Applications
Industrial, Automation & Process Control, Signal Processing
SKU: n/a
