SKU:ES-RPI-PICO2

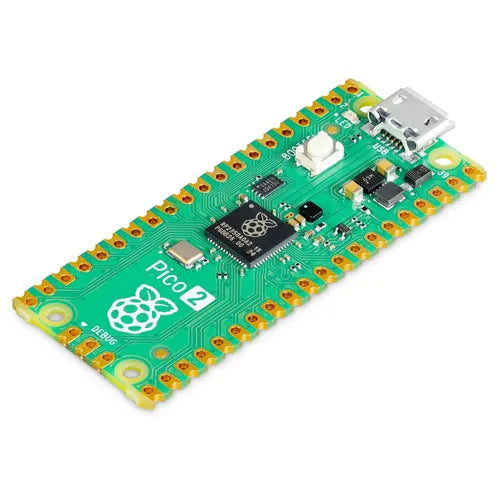

Raspberry Pi Pico 2 — RP2350 dual-core Cortex-M33/RISC-V, 520KB SRAM, 4MB Flash
Regular price
Rs.1,900.00
Sale price:
Rs.1,900.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
The Raspberry Pi Pico 2 is the second-generation microcontroller board from Raspberry Pi, powered by the RP2350 — a dual-core Arm Cortex-M33 / RISC-V Hazard3 chip with significantly improved performance, security features, and power efficiency over the original Pico. It retains the same compact form factor and pinout, making it a drop-in upgrade for existing Pico projects. Note: the Pico 2 does not include wireless connectivity — for Wi-Fi and Bluetooth, see the Raspberry Pi Pico 2 W.
Key Specifications:
- Microcontroller: Raspberry Pi RP2350A
- CPU: Dual-core Arm Cortex-M33 or RISC-V Hazard3 @ up to 150MHz (selectable)
- SRAM: 520KB on-chip
- Flash: 4MB QSPI (on-board)
- GPIO: 26 multi-function GPIO pins
- ADC: 3 × 12-bit ADC inputs (500ksps)
- PWM: 24 PWM channels
- Interfaces: 2× UART, 2× SPI, 2× I²C, 24× PWM, 3× PIO state machines (12 total)
- USB: USB 1.1 device and host via micro-USB connector
- Security: TrustZone for Cortex-M, signed boot, 8KB OTP storage
- Power: 1.8V – 5.5V input via VSYS; onboard SMPS and LDO
- Operating temperature: −20°C to +85°C
- Wireless: None (no Wi-Fi or Bluetooth)
- Dimensions: 51mm × 21mm
- Form factor: Castellated module — can be soldered directly to a PCB
GPIO Highlights:
- Pins 0–22: GP0–GP22 (digital I/O, PWM, UART, SPI, I²C)
- Pins 26–28: GP26–GP28 (ADC0–ADC2)
- Pin 36: 3V3 output (300mA max)
- Pin 38: GND
- Pin 39: VSYS (power input)
- Pin 40: VBUS (5V from USB)
- 3× PIO blocks with 4 state machines each for custom peripherals
Programming:
- MicroPython (official Raspberry Pi firmware)
- C/C++ (Raspberry Pi Pico SDK)
- CircuitPython (Adafruit)
- Arduino IDE (via community board package)
- Programming via USB drag-and-drop (UF2 bootloader) or SWD
Applications:
- Embedded systems and IoT edge devices (with external wireless module)
- Robotics and motor control
- USB HID devices (keyboard, mouse, gamepad)
- Audio processing and synthesis
- Custom communication protocols via PIO
- Educational microcontroller projects
