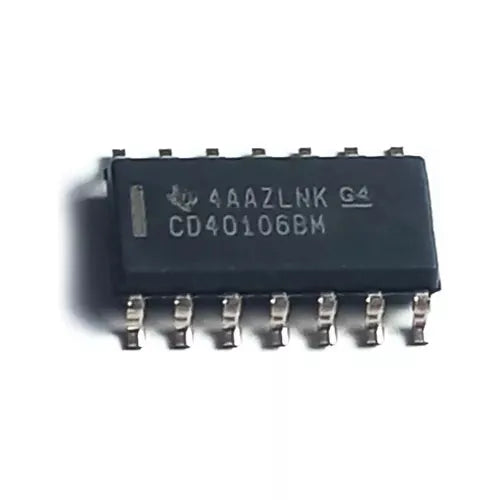

CD40106BM hex Schmitt-trigger inverter — CMOS, SOP-14 SMD package

The CD40106BM is a CMOS hex Schmitt-trigger inverter IC in an SOP-14 surface-mount package. It contains six independent inverting buffers, each with a Schmitt-trigger input that provides hysteresis for clean, noise-immune switching. The difference between the positive-going threshold (V_P) and the negative-going threshold (V_N) defines the hysteresis voltage (V_H), making it ideal for conditioning slow or noisy input signals into clean digital transitions.

Rated for −55°C to +125°C operation, the CD40106BM is suitable for industrial and automotive environments. It is a direct SMD equivalent of the CD40106B in DIP packaging.

Key Specifications:

• Part number: CD40106BM
• Function: Hex Schmitt-trigger inverter (6 independent channels)
• Logic family: CMOS (4000B series)
• Supply voltage (V_DD): 3V – 18V
• Input hysteresis: yes (V_H = V_P − V_N)
• Propagation delay: ~60ns typ. @ V_DD = 10V
• Operating temperature: −55°C to +125°C
• Package: SOP-14 (SO-14), surface mount
• Pin count: 14
• Technology: CMOS
• RoHS compliant: yes

Key Features:

• Schmitt-trigger inputs — built-in hysteresis for noise-immune signal conditioning
• Wide supply voltage range — 3V to 18V, compatible with 3.3V, 5V, and 12V systems
• Six independent inverters — all in a single compact SOP-14 package
• High noise immunity — ideal for slow-rising or noisy input signals
• Industrial temperature range — −55°C to +125°C
• Compatible with all CMOS 4000B series logic levels

Applications:

• Signal conditioning and waveform squaring
• Oscillator and clock generation circuits
• Switch debouncing
• Noise filtering on digital inputs
• Level shifting between logic families
• Monostable and astable multivibrator circuits

Note: The SOP-14 package requires SMD soldering. For through-hole applications, use the CD40106BE (DIP-14) variant instead.
