• Retriggerable/resettable capability
• Trigger and reset propagation delays independent of R_X, C_X
• Triggering from leading or trailing edge
• Q and Q\ buffered outputs available
• Separate resets
• Replaces CD4538B Type
• Wide range of output-pulse widths
• Schmitt-trigger input allows unlimited rise and fall times on +TR and -TR inputs
• 100% tested for maximum quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
• Noise margin (full package-temperature range):
  • 1 V at V_DD = 5 V
  • 2 V at V_DD = 10 V
  • 2.5 V at V_DD = 15 V
• 5-V, 10-V, and 15-V parametric ratings
• Standardized, symmetrical output characteristics
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
• Applications:
  • Pulse delay and timing
  • Pulse shaping

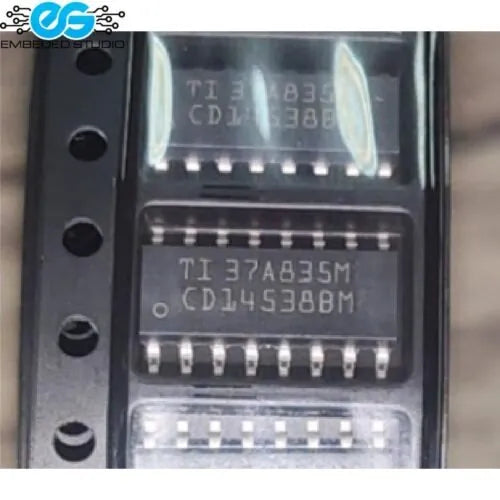

CD14538BM SOP Price in Pakistan
