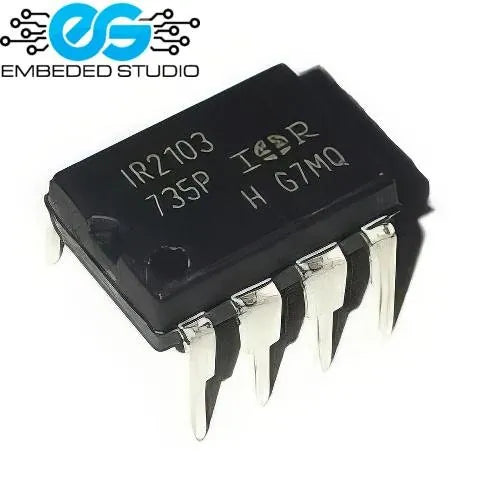

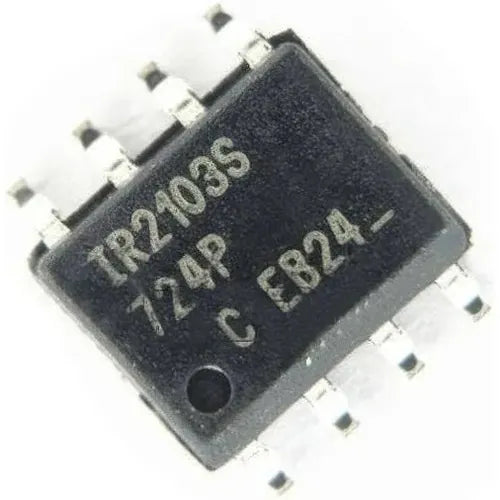

IR2103 / IR2103S — Half-Bridge Gate Driver IC with Enable

The IR2103 (DIP-8) and IR2103S (SOP-8) are half-bridge gate driver ICs from Infineon (formerly International Rectifier), featuring a built-in enable input for hardware shutdown control. With a 600V high-side floating channel, bootstrap operation, and matched propagation delays, the IR2103 is ideal for motor drives, inverters, and power converters where fault protection and enable control are required in Pakistan.

Technical Specifications

Parameter	Value
Part Number	IR2103 (DIP-8) / IR2103S (SOP-8)
Type	Half-Bridge Gate Driver with Enable
High-Side Voltage (V₂offset)	Up to 600V
Gate Drive Supply (V₂CC)	10V – 20V
Output Current (Source/Sink)	210mA / 420mA
Propagation Delay	Matched (typ. 130ns)
Input Logic	HIN + LIN + SD (enable/shutdown)
Shoot-Through Protection	Via matched delays
Packages	DIP-8 (IR2103), SOP-8 (IR2103S)

Key Features

600V high-side floating channel — drives high-side N-channel MOSFETs/IGBTs
SD (shutdown/enable) input — hardware fault protection and enable control
Higher output current than IR2101: 210mA source / 420mA sink
Matched propagation delays for precise switching timing
Bootstrap operation — no isolated power supply needed
Available in DIP-8 (through-hole) and SOP-8 (SMD) packages

Applications

Half-bridge and full-bridge motor drives
3-phase inverters (with 3 ICs)
DC-DC converters with enable control
BLDC motor controllers with fault protection
UPS and solar inverter systems
