IR2106 / IR2106S — Half-Bridge Gate Driver IC with Shutdown

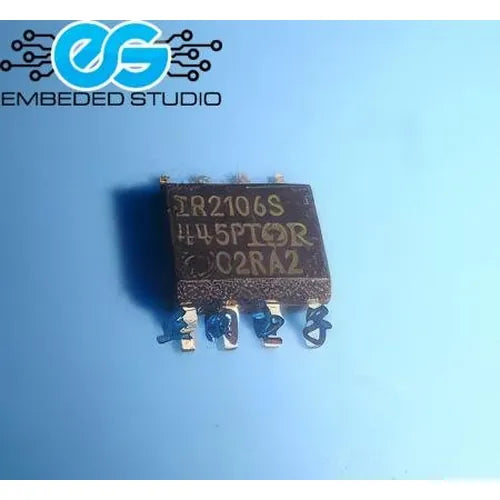

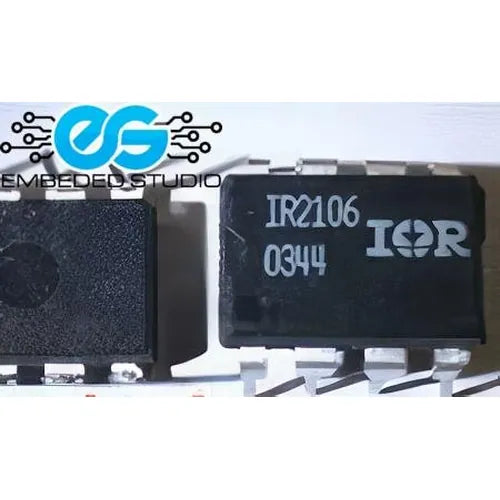

The IR2106 (DIP-8) and IR2106S (SOP-8) are high-current half-bridge gate driver ICs from Infineon (formerly International Rectifier). Featuring a 600V high-side floating channel, a dedicated SD (shutdown) pin, and high output drive capability, the IR2106 is designed for demanding motor drive and inverter applications where fast switching and reliable fault protection are critical in Pakistan.

Technical Specifications

Parameter	Value
Part Number	IR2106 (DIP-8) / IR2106S (SOP-8)
Type	Half-Bridge Gate Driver with Shutdown
High-Side Voltage (V₂offset)	Up to 600V
Gate Drive Supply (V₂CC)	10V – 20V
Output Current (Source/Sink)	290mA / 600mA
Propagation Delay	Matched (typ. 130ns)
Input Logic	HIN + LIN + SD (shutdown)
Shoot-Through Protection	Via matched delays
Packages	DIP-8 (IR2106), SOP-8 (IR2106S)

Key Features

600V high-side floating channel — drives high-side N-channel MOSFETs/IGBTs
High output current: 290mA source / 600mA sink — drives large gate capacitances fast
SD (shutdown) input for hardware fault protection
Matched propagation delays for precise switching timing
Bootstrap operation — no isolated power supply needed
Available in DIP-8 (through-hole) and SOP-8 (SMD) packages

Applications

High-power half-bridge and full-bridge motor drives
3-phase inverters for BLDC and AC motors
High-frequency DC-DC converters
Industrial inverters and UPS systems
Solar inverters and power factor correction
