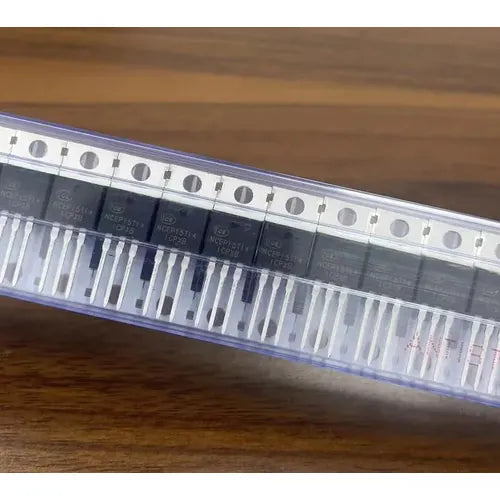

NCEP15T14 MOSFET 15T14
Features
- VDS =150V, ID =140A
RDS(ON) <6.2mΩ @ VGS=10V - Excellent gate charge x RDS(on) product(FOM)
- Very low on-resistance RDS(on)
- 175 °C operating temperature
- Pb-free lead plating
- 100% UIS tested
₨250
CompareNCEP15T14 MOSFET uses Super Trench technology that is uniquely optimized to provide the most efficient high-frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching and synchronous rectification.
Application
● DC/DC Converter
● Ideal for high-frequency switching and synchronous
rectification
NCEP15T14 MOSFET uses Super Trench technology that is uniquely optimized to provide the most efficient high-frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching and synchronous rectification.
15T14 mosfet price in pakistan
