SKU:ES-UT207A-CLAMP

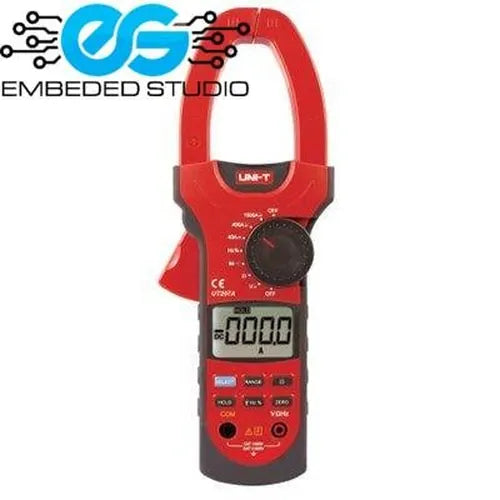

UT207A digital clamp meter — 1000A AC/DC, True RMS, Hall-effect sensor
Regular price
Rs.10,000.00
Sale price:
Rs.10,000.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
The UNI-T UT207A is a professional-grade digital clamp meter capable of measuring up to 1000A AC/DC current using a built-in Hall-effect sensor. With True RMS measurement, auto and manual ranging, and a 3 readings/second sampling rate, it delivers accurate results on both sinusoidal and non-sinusoidal waveforms — making it ideal for industrial, HVAC, electrical panel, and motor testing applications. The 1-metre drop-proof construction and CE certification make it a reliable tool for field use.
Key Specifications:
- AC Current: 1000A (Hall-effect sensor, True RMS)
- DC Current: 1000A (Hall-effect sensor)
- AC Voltage: 750V
- DC Voltage: 1000V
- Resistance: 60MΩ
- Capacitance: 60mF
- Frequency: 99.99Hz – 9.999kHz
- Duty cycle: 0.1% – 99.9%
- Temperature: −40°C – 1000°C (with thermocouple input)
- Sampling rate: 3 readings/second
- Display: 6000-count LCD with backlight
- Jaw opening: 55mm
- Drop proof: 1 metre
- Certification: CE (European Union)
- Auto power off: yes
- Low battery indication: yes
Key Features:
- True RMS measurement — accurate on non-sinusoidal waveforms (VFDs, inverters, switching loads)
- Hall-effect AC/DC clamp sensor — measures DC current without breaking the circuit
- Auto and manual ranging — fast auto mode or precise manual selection
- Relative (REL) zeroing mode — eliminates offset errors for differential measurements
- Data hold — freezes the display for easy reading in tight spaces
- LCD backlight — readable in low-light environments
- 1m drop proof — built for field and workshop use
Applications:
- Industrial motor and drive current measurement
- Electrical panel and distribution board testing
- HVAC system commissioning and maintenance
- Generator and UPS load testing
- Solar inverter output measurement
- Electrical installation and maintenance
Package Contents:
- 1 × UT207A clamp meter
- 1 × Test leads (red and black)
- 1 × Thermocouple probe (Type K)
- 1 × Carrying case
- 1 × 9V battery (installed)
- 1 × User manual
