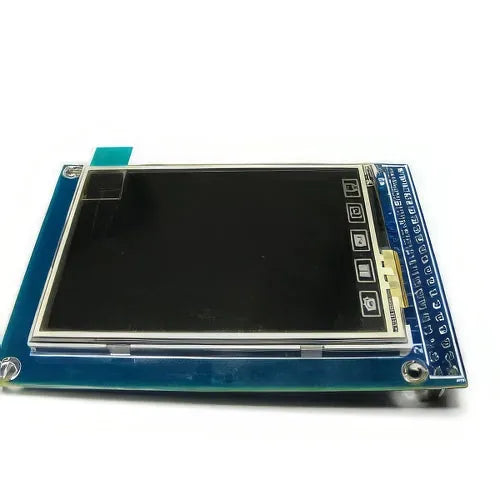

Arduino TFT Display 3.2 Inch LCD
Arduino TFT Display 3.2 Inch LCD with 262 K color 480 x 320 resolutions. The controller of this LCD module is HX8357B, it supports a 16-wire Data Bus interface. Moreover, this module includes the 5 V-3.3 V power conversion circuit and Level conversion circuit, This Module can be directly inserted...
Regular price
Rs.4,200.00
Regular price
Rs.4,200.00
Arduino TFT Display 3.2 Inch LCD with 262 K color 480 x 320 resolutions. The controller of this LCD module is HX8357B, it supports a 16-wire Data Bus interface. Moreover, this module includes the 5 V-3.3 V power conversion circuit and Level conversion circuit, This Module can be directly inserted into the Arduino Mega2560 Board,it also includes the SD card socket and SPI FLASH circuit.
Parameters:
- Display Type: 3.2 inch a-si TFT LCD Module
- Glass Type: TFT IPS(Full-Angle)
- Display Resolution: 480 X RGB X 320 Pixels
- Backlight: 6 chip High-Light white LEDs
- Control IC: ILI9481
- Interface: 16 Bit parallel interface
- PCB Module size: 89.92 mm X 54.25 mm
- LCD Area(W x H x T): 50.74 mm X 78.35 mm X 1.88 mm
- Active Area(W x H): 67.68 mm X 45.12 mm
