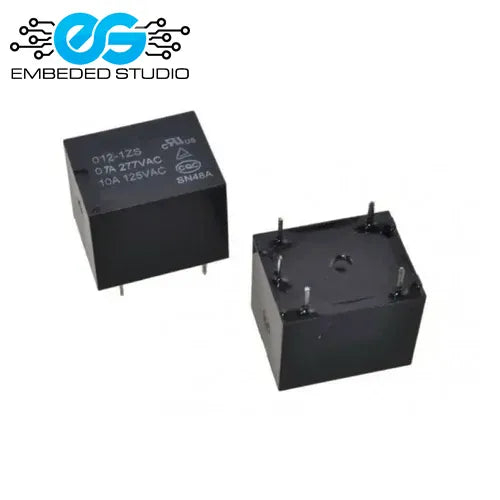

12V 10A DC Relay — SPDT Electromagnetic Relay
Regular price
Rs.35.00
Sale price:
Rs.35.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
12V 10A DC Relay — Single Pole Double Throw Electromagnetic Relay
The 12V 10A DC Relay is a robust general-purpose electromagnetic relay with a 12V coil, ideal for automotive electronics, 12V power systems, industrial control panels, and custom relay boards. With 10A switching capacity and SPDT contacts, it handles a wide range of switching applications reliably.
Technical Specifications
| Parameter | Value |
|---|---|
| Coil Voltage | 12V DC |
| Coil Resistance | ~400Ω |
| Coil Current | ~30mA |
| Contact Type | SPDT (1NO + 1NC) |
| Max AC Load | 250V AC / 10A |
| Max DC Load | 30V DC / 10A |
| Contact Material | Silver alloy |
| Operate Time | ≤10ms |
| Release Time | ≤5ms |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 100,000 operations |
| Operating Temperature | -40°C to +85°C |
| Package | PCB mount (through-hole) |
Key Features
- 12V coil — ideal for automotive and 12V power systems
- SPDT contacts — NO and NC outputs available
- 10A switching capacity for high-current loads
- Silver alloy contacts for long life and low contact resistance
- Standard PCB footprint for easy integration
- Low coil current (~30mA) — efficient operation
Pin Configuration
Coil pins: Pin 1 (Coil +), Pin 2 (Coil −). Contact pins: COM (Common), NO (Normally Open), NC (Normally Closed).
Applications
- Automotive relay circuits and car electronics
- 12V solar and battery systems
- Industrial control panels
- Custom relay module PCB designs
- Motor and pump switching
Buy 12V 10A DC Relay at the best price from Embeded Studio.
