1500W DC-DC Boost Step-Up Converter 10-60V to 12-90V 30A | Constant Voltage Current Power Supply Module

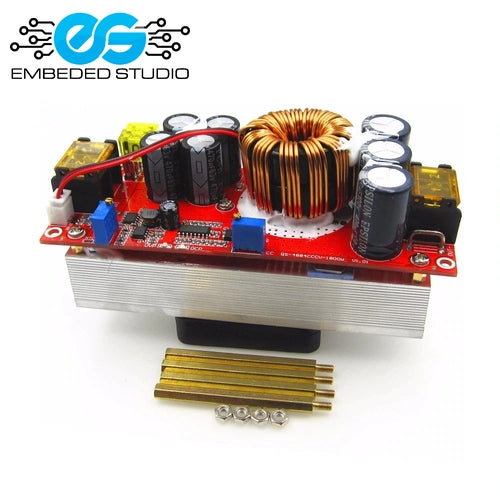

1500W 30A DC-DC Boost Step-Up Converter — 10-60V to 12-90V

Take control of your power delivery with this heavy-duty 1500W DC-DC boost step-up converter. Featuring constant voltage and constant current (CV/CC) control, this module is engineered for demanding applications — from solar battery charging and electric vehicle power systems to industrial bench supplies and high-power DIY electronics projects. With a 30A output capacity and wide voltage range, it handles the toughest loads with ease.

Key Features

• Constant Voltage & Constant Current (CV/CC): Dual-mode control for precise power delivery
• Wide Input Range: 10V to 60V DC — compatible with 12V, 24V, 36V, 48V systems
• Adjustable Output: 12V to 90V DC — dial in your exact required voltage
• High Current: Up to 30A continuous output
• Max Power: 1500W peak power handling
• High Efficiency: Up to 95% conversion efficiency — minimal heat loss
• Built-in Protection: Over-voltage, over-current, over-temperature, and short-circuit protection
• LED Display: Real-time voltage and current readout
• Active Cooling Fan: Sustained high-power operation without thermal throttling

Applications

• Solar panel battery charging systems
• Electric vehicle and e-bike power regulation
• Car and vehicle auxiliary power
• Industrial and bench power supplies
• Battery bank management and conditioning
• High-power DIY electronics and robotics projects

Specifications

• Input Voltage: 10V – 60V DC
• Output Voltage: 12V – 90V DC (adjustable)
• Max Output Current: 30A
• Max Power: 1500W
• Control Mode: CV/CC (Constant Voltage / Constant Current)
• Efficiency: ≤95%
• Operating Temperature: -40°C to +85°C
• Dimensions: ~128 x 68 x 50mm (approx.)

Note: Output voltage must always be set higher than input voltage for boost operation. Ensure adequate ventilation and heat dissipation for sustained high-power use.
