1602 LCD Character Display 16x2

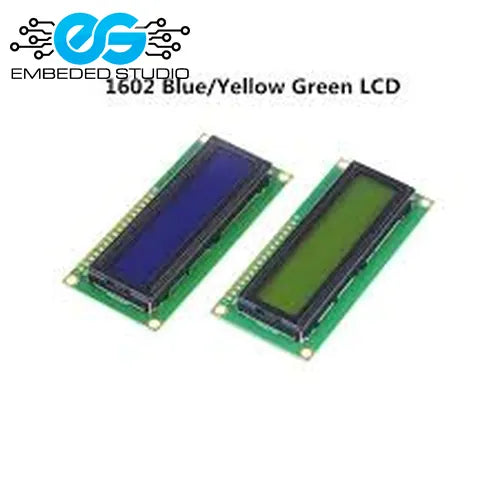

This 1602LCD 1602 LCD (Blue/Green) 16×2, 2-line parallel liquid crystal display achieves a large viewing area in a compact package. It features a yellow-green LED backlight and uses the common HD 44780 interface (330 k pdf), so the sample interface code is widely available for a variety of micro-controllers. This LCD is also available without a backlight.

The DDRAM address 0x00 corresponds to the first character of the top line, address 0x0F corresponds to the last character of the top line, address 0x40 corresponds to the first character of the second line, and address 0x4F corresponds to the last character of the second line.

FEATURES

• • Type: character
• • Display format: 16 x 2 characters
• • Built-in controller: ST7066U (or equivalent)
• • Duty cycle: 1/16
• • 5 x 8 dots including cursor
• • + 5 V power supply
• • LED can be driven by pin 1, pin 2, or A and K

1602 lcd
