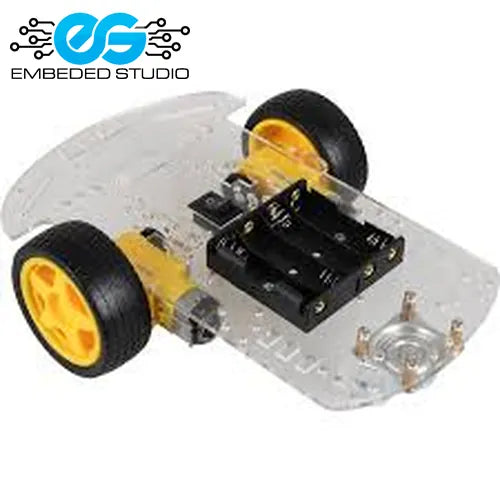

2WD robotic car chassis kit with DC geared motors and encoder discs

The 2WD Robotic Car Chassis Kit is the ideal starting platform for anyone building their first wheeled robot. The dual-layer acrylic chassis is lightweight yet rigid, and the included 1:48 ratio DC geared motors provide smooth, controllable drive at 3V–6V. With encoder (velocimeter) discs included, you can add speed sensing for closed-loop control — perfect for line followers, obstacle avoiders, and remote-controlled robots.

Kit Contents:

• 2x Acrylic chassis plates (upper and lower deck)
• 2x DC geared motors (1:48 reduction ratio)
• 4x Rubber wheels with tyres
• 4x Velocimeter (encoder) code discs
• 1x Universal caster wheel (front support)
• 8x Motor mounting fasteners
• Screws, nuts, and spacers
• Assembly drawing / instruction sheet

Motor Specifications:

• Type: DC geared motor
• Reduction ratio: 1:48
• Working voltage: 3V – 6V
• No-load speed: ~200 RPM at 6V (approx.)

Tyre Specifications:

• Diameter: 68 mm
• Width: 26 mm
• Centre hole: 5.3 mm × 3.66 mm (D-shaft compatible)

Compatible With:

• Arduino Uno, Nano, Mega
• ESP32 and ESP8266
• Raspberry Pi
• Any microcontroller with PWM motor driver (e.g. L298N, L293D, TB6612)

Applications:

• Line follower robots
• Obstacle avoidance robots
• Bluetooth / Wi-Fi remote-controlled cars
• Speed-controlled robots using encoder feedback
• Robotics learning and STEM projects
