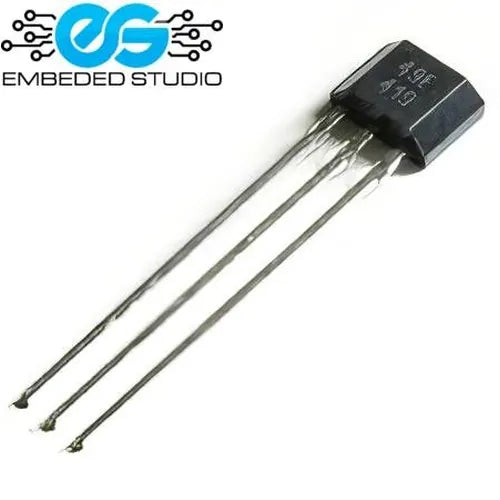

49E / AH49E Linear Hall Effect Sensor — Analog Output
Regular price
Rs.22.00
Sale price:
Rs.22.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
49E / AH49E Linear Hall Effect Sensor — Analog Output
The 49E (AH49E) is a linear Hall Effect sensor that provides a continuous analog voltage output proportional to the applied magnetic field strength. Unlike switching Hall sensors, the 49E outputs a ratiometric analog signal, making it perfect for precise magnetic field measurement, current sensing, and motor position feedback applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (Vcc) | 4.5V – 6V DC |
| Output Type | Analog (Ratiometric) |
| Quiescent Output Voltage | ~Vcc/2 (2.25V @ 4.5V supply) |
| Sensitivity | ~1.0 mV/Gauss (typical) |
| Output Current | 1 mA max |
| Operating Temperature | -40°C to +85°C |
| Package | SIP-3 (3-pin inline) |
| Sensing Type | Linear / Bipolar (North & South poles) |
Pinout
| Pin | Name | Description |
|---|---|---|
| 1 | VCC | Supply Voltage (4.5V – 6V) |
| 2 | GND | Ground |
| 3 | OUT | Analog Output (proportional to field strength) |
Key Features
- Linear analog output — proportional to magnetic field intensity
- Bipolar sensing — responds to both North and South poles
- Ratiometric output — output scales with supply voltage
- Compact SIP-3 package — breadboard and PCB compatible
- Compatible with Arduino, STM32, PIC, ESP32 ADC inputs
Applications
- Current sensing and power monitoring
- Motor position and speed feedback
- Magnetic field strength measurement
- Joystick and throttle position sensing
- Proximity and displacement measurement
