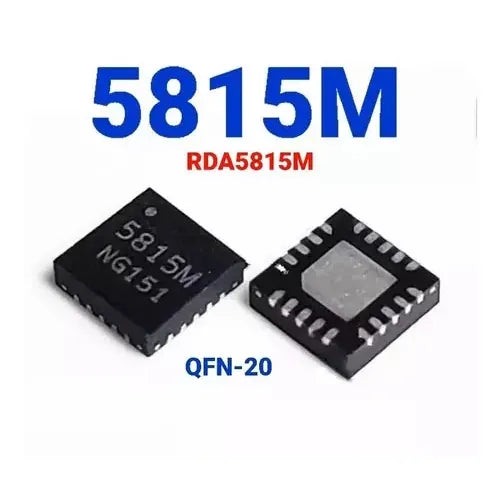

RDA5815M 5815M QFN-20 Satellite Signal IC
Regular price
Rs.60.00
Sale price:
Rs.60.00
Regular price:
Rs.120.00
Sale:
-50%
Shipping calculated at checkout.
In stock, ready to ship
RDA5815M (5815M) — QFN-20 Satellite Tuner IC
The RDA5815M (also marked 5815M) is a highly integrated satellite tuner IC in a compact QFN-20 package. Designed for DVB-S/S2 satellite receivers, it integrates the complete RF front-end including LNA, mixer, VCO, and PLL, enabling a very small PCB footprint. Widely used in satellite set-top boxes, FTA receivers, and dish antenna systems in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | RDA5815M / 5815M |
| Manufacturer | RDA Microelectronics |
| Package | QFN-20 |
| Function | Satellite tuner / RF front-end IC |
| Frequency Range | 250MHz – 2150MHz (L-band) |
| Standard | DVB-S / DVB-S2 |
| Supply Voltage | 3.3V |
| Interface | I2C control |
Key Features
- Fully integrated satellite tuner: LNA, mixer, VCO, PLL in one chip
- 250MHz – 2150MHz L-band frequency range
- DVB-S and DVB-S2 compatible
- Compact QFN-20 package for space-constrained designs
- I2C control interface
- 3.3V single supply operation
Applications
- DVB-S/S2 satellite set-top boxes
- Free-to-air (FTA) satellite receivers
- Dish antenna and LNB systems
- Satellite signal measurement equipment
- Replacement IC for satellite receiver repair
Buy RDA5815M 5815M QFN-20 Satellite Tuner IC at the best price from Embeded Studio.
