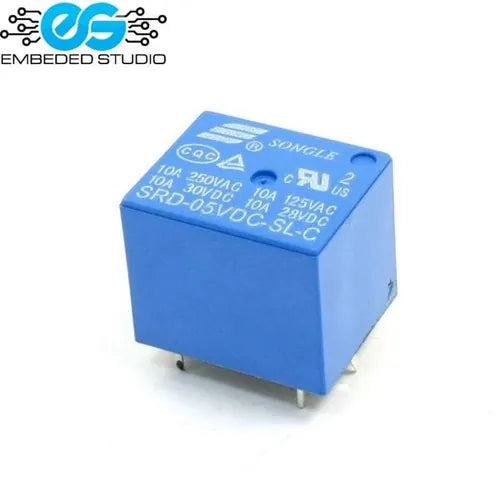

5V 10A DC Relay — SPDT Electromagnetic Relay
Regular price
Rs.45.00
Sale price:
Rs.45.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
5V 10A DC Relay — Single Pole Double Throw Electromagnetic Relay
The 5V 10A DC Relay is a compact, general-purpose electromagnetic relay designed for direct PCB mounting or use in relay module circuits. With a 5V coil and 10A switching capacity, it is ideal for microcontroller-driven switching applications, custom relay boards, and industrial control circuits in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Coil Voltage | 5V DC |
| Coil Resistance | ~70Ω |
| Coil Current | ~70mA |
| Contact Type | SPDT (1NO + 1NC) |
| Max AC Load | 250V AC / 10A |
| Max DC Load | 30V DC / 10A |
| Contact Material | Silver alloy |
| Operate Time | ≤10ms |
| Release Time | ≤5ms |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 100,000 operations |
| Operating Temperature | -40°C to +85°C |
| Package | PCB mount (through-hole) |
Key Features
- 5V coil — directly driven by transistor from microcontroller
- SPDT contacts — NO and NC outputs available
- 10A switching capacity for high-current loads
- Silver alloy contacts for long life and low resistance
- Standard PCB footprint — easy to integrate into custom boards
- Fast operate and release times
Pin Configuration
Coil pins: Pin 1 (Coil +), Pin 2 (Coil −). Contact pins: COM (Common), NO (Normally Open), NC (Normally Closed).
Applications
- Custom relay module PCB designs
- Microcontroller-driven switching circuits
- Industrial control and automation
- Power supply switching
- Motor on/off control
Buy 5V 10A DC Relay at the best price from Embeded Studio.
