SKU:60R041C6 -MOSFET

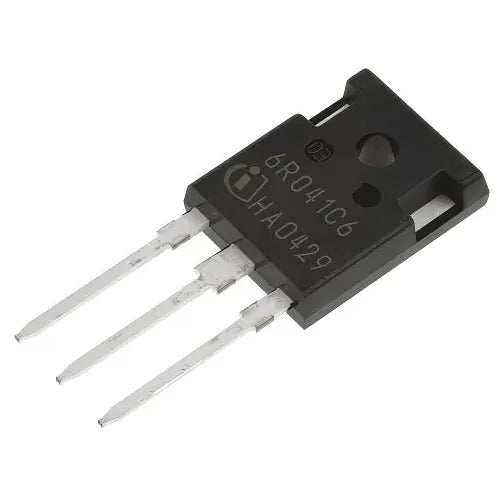

IPP60R041C6 N-Channel Power MOSFET 600V 41A
Regular price
Rs.275.00
Sale price:
Rs.275.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
IPP60R041C6 — N-Channel CoolMOS™ Power MOSFET (600V / 41A)
The IPP60R041C6 (also known as 60R041C6) is a high-performance N-channel CoolMOS™ power MOSFET from Infineon Technologies, designed for high-efficiency switching power supplies, PFC stages, and motor drives. With a 600V breakdown voltage, ultra-low R₂₂(on) of 41mΩ, and fast switching characteristics, it is the preferred choice for engineers designing high-efficiency power electronics in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IPP60R041C6 / 60R041C6 |
| Type | N-Channel Power MOSFET |
| V₂₂(BR)DSS | 600V |
| I₂ (Continuous Drain Current) | 41A @ 25°C |
| R₂₂(on) (max) | 41mΩ @ V₂GS = 10V |
| V₂GS (Gate-Source Voltage) | ±20V |
| Q₂ (Total Gate Charge) | Typ. 68nC |
| Package | TO-220 |
| Technology | CoolMOS™ C6 |
Key Features
- 600V breakdown voltage — suitable for mains-connected power supplies
- Ultra-low R₂₂(on) of 41mΩ — minimizes conduction losses
- CoolMOS™ C6 technology — best-in-class switching performance
- Fast body diode for hard-switching and bridgeless PFC topologies
- TO-220 package — easy heatsinking and PCB mounting
Applications
- Switch-mode power supplies (SMPS) and adapters
- Power factor correction (PFC) stages
- Motor drives and inverters
- Solar inverters and UPS systems
- High-frequency resonant converters
Buy IPP60R041C6 N-Channel Power MOSFET at the best price from Embeded Studio.
