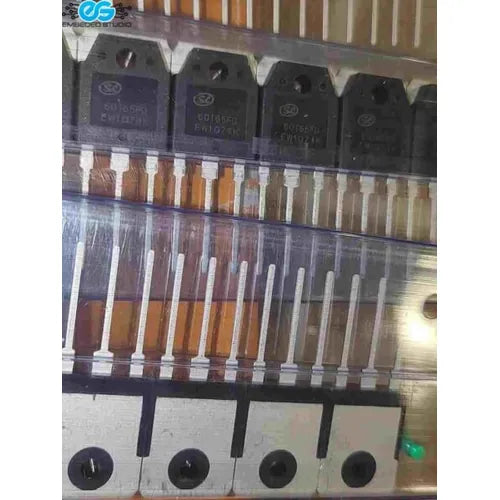

60T65FD IGBT
Type: IGBT + Anti-Parallel Diode Marking Code: 60T65FD Type of IGBT Channel: N Pcⓘ - Maximum Power Dissipation: 450 W |Vce|ⓘ - Maximum Collector-Emitter Voltage: 650 V |Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V |Ic|ⓘ - Maximum Collector Current: 120 A @25℃ |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 2.2 V...
Regular price
Rs.350.00
Regular price
Rs.350.00
Type: IGBT + Anti-Parallel Diode
Marking Code: 60T65FD
Type of IGBT Channel: N
Pcⓘ - Maximum Power Dissipation: 450 W
|Vce|ⓘ - Maximum Collector-Emitter Voltage: 650 V
|Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
|Ic|ⓘ - Maximum Collector Current: 120 A @25℃
|VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 2.2 V @25℃
|VGEth|ⓘ - Maximum G-E Threshold Voltag: 6.5 V
Tjⓘ - Maximum Junction Temperature: 150 ℃
trⓘ - Rise Time, typ: 190 nS
Coesⓘ - Output Capacitance, typ: 200 pF
Qgⓘ - Total Gate Charge, typ: 110 nC
Check out more products by clicking here
60T65FD IGBT Price in Pakistan
