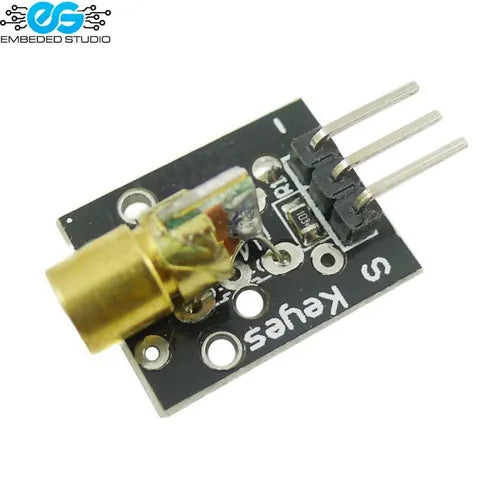

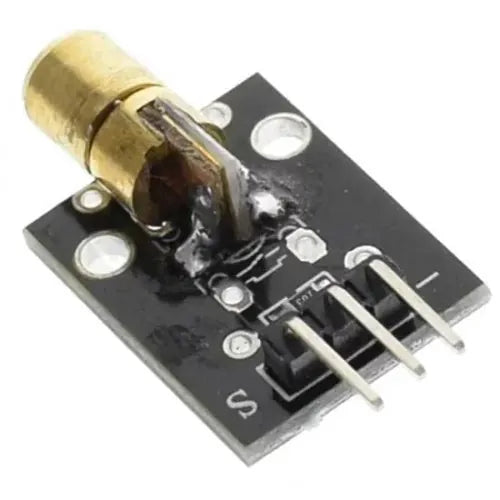

650nm Red Laser Diode Module
650nm Laser Diode Module
The 650nm Laser Diode Module encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project. You can use these for laser harps, electronic 'trip wires', laser-vision guidance, and more! Simply connect power to the red and black wires and you will be lasing in no time. Get a laser pointer atop your gun Sam! Or make an invisible trip wire! Or simply send low baud pwm coded message to a Red/IR LED/receiver. Possibilities are limited only by your imagination.
Please note: This is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them.
Specification
- Outer diameter: 6mm
- Wavelength: 650nm
- Working Voltage: 5 volts
- Class IIIR laser product, 5mW power output
- Includes Clamshell Packaging
TECHNICAL DETAILS
- Weight: 6.3g
- Diameter: 10mm / 0.4"
- Length: 31mm / 1.2"
- Wire length: at least 100mm / 3.9"
- 650nm wavelength
- 2.8 - 5.2V DC voltage input
- 25mA max current draw
- Operating temperature -10°C to 40°C;
Product description
- Light power: 5mW Transmit power: 58mW
- Supply Voltage: 5V DC
- Operating Current: 40mA
- Operating temperature: -36 ~ 65
- Storage temperature: -36 ~ 65
- Spot size: At 15 meters approx. 10mm-15mm dot size.
- Size: 6.5*15mm (including circuit board)
- Driving mode: APC
- Single weight: 2.5G
- Power lead length: 95mm
- Housing material: Brass
- Focusable: Yes
