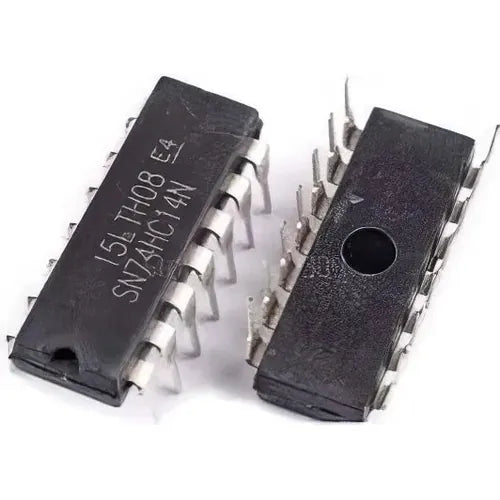

74HC14 hex Schmitt-trigger inverter IC — DIP-14 package

The 74HC14 is a high-speed CMOS hex Schmitt-trigger inverter containing six independent inverting channels, each with hysteresis on the input. The Schmitt-trigger action gives the device excellent noise immunity and the ability to "square up" slow or noisy input signals — making it ideal for signal conditioning, oscillator circuits, and debouncing applications. This listing is for the DIP-14 (Dual In-line Package) variant, which is breadboard and through-hole PCB compatible.

Key Specifications:

• Function: Hex inverting Schmitt trigger (6 channels)
• Package: DIP-14 (through-hole, 2.54mm pitch)
• Supply voltage (V_CC): 2.0V – 6.0V
• Input hysteresis: ~0.9V typical at 5V (noise immunity)
• Output drive: 10 LSTTL loads
• Max propagation delay: 13ns at 5V
• Input current: ≤1.0μA
• ESD protection: HBM 2000V, Machine Model 200V
• JEDEC Standard No. 7A compliant
• Pb-free / RoHS compliant
• Pinout compatible with 74LS14, 74LS04, 74HC04

Pinout (DIP-14):

• Pins 1, 3, 5, 9, 11, 13: Inputs (A1–A6)
• Pins 2, 4, 6, 8, 10, 12: Outputs (Y1–Y6, inverted)
• Pin 7: GND
• Pin 14: V_CC

Applications:

• Signal conditioning and waveform shaping
• RC oscillator circuits
• Switch and button debouncing
• Noise-immune logic level conversion
• Clock signal generation
• Interface between slow analog signals and digital logic
