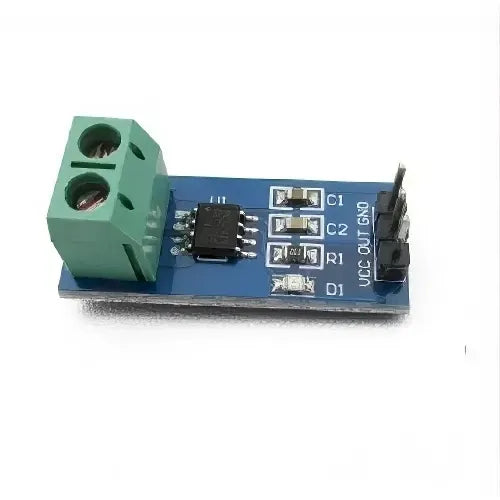

ACS712 Current Sensor Module — 5A/20A/30A | Arduino Compatible
Regular price
Rs.220.00
Sale price:
Rs.220.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Variants:
ACS712-5A
In stock, ready to ship
ACS712 Current Sensor Module — Hall Effect Based AC/DC Current Measurement
The ACS712 Current Sensor Module uses Allegro's ACS712 Hall effect IC to measure AC or DC current with high accuracy and full galvanic isolation. Whether you're building an energy monitor, a battery management system, or an overcurrent protection circuit, this module delivers clean analog output directly readable by Arduino, ESP32, or any ADC-equipped microcontroller.
Technical Specifications
| Parameter | Value |
|---|---|
| IC | Allegro ACS712 |
| Available Ranges | 5A, 20A, 30A (select variant) |
| Sensitivity | 185 mV/A (5A) / 100 mV/A (20A) / 66 mV/A (30A) |
| Output Type | Analog voltage (ratiometric) |
| Zero Current Output | VCC/2 (2.5V at 5V supply) |
| Supply Voltage | 5V DC |
| Bandwidth | 80 kHz |
| Isolation Voltage | 2.1 kVRMS |
| Operating Temperature | -40°C to +85°C |
| Interface | Analog output (0–5V) |
Key Features
- Measures both AC and DC current
- Full galvanic isolation — safe for mains current measurement
- Analog output directly readable by Arduino ADC
- Low noise output with internal filtering
- Available in 5A, 20A, and 30A variants
- Compact module with screw terminals for current path
Pin Configuration
Module pins: VCC (5V), GND, OUT (Analog output). Current path: screw terminals IP+ and IP− (wire the load current through these).
Applications
- Arduino energy monitoring systems
- Battery charge/discharge monitoring
- Overcurrent protection circuits
- Solar panel current measurement
- Motor current sensing
- Smart power meters
Datasheet
