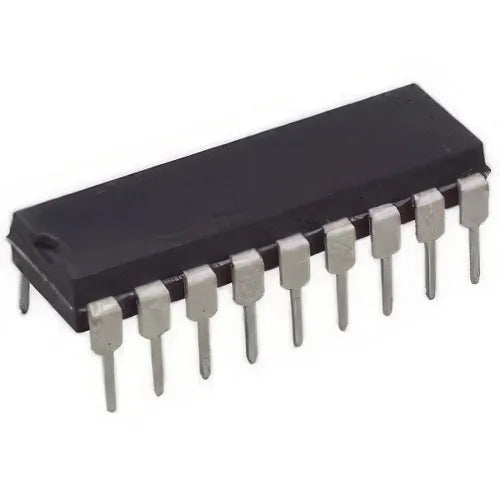

Name: ADC0800 Converter 8-Bit Analog to Digital
Brand: My Store
Price: 100.00 PKR
Availability: InStock

ADC0800 Converter 8-Bit Analog to Digital

Write a review

Rs.100.00

Brand : My Store

SKU :

Availability :

Translation missing: en.products.product.product_variants

Quantity

size chart

The ADC0800 is an 8-bit monolithic A/D converter using P-channel ion-implanted MOS technology. It contains a high input impedance comparator, 256 series resistors and analog switches, control logic and output latches. Conversion is performed using a successive approximation technique where the unknown analog voltage is compared to the resistor tie points using analog switches. When the appropriate tie point voltage matches the unknown voltage, conversion is complete and the digital outputs contain an 8-bit complementary binary word corresponding to the unknown. The binary output is TRI-STATEÉ to permit bussing on common data lines. The ADC0800PD is specified over b55§C to a125§C and the ADC0800PCD is specified over 0§C to 70§C.
