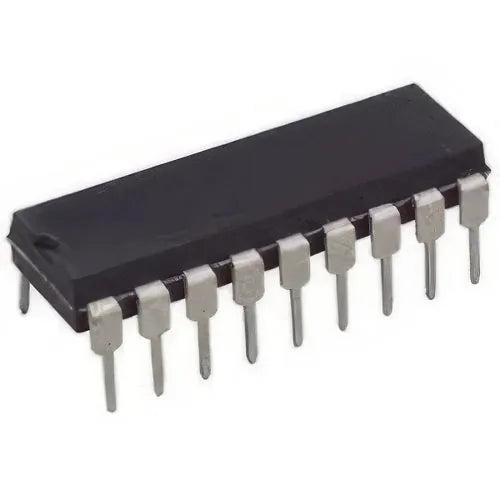

ADC0808 8-Bit Analog to Digital Converter IC
Regular price
Rs.650.00
Sale price:
Rs.650.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Out of stock
The ADC0808 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor-compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high-impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of the 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
