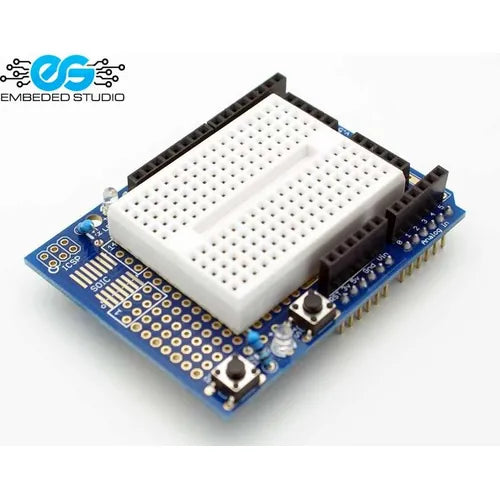

Arduino prototype shield with 170-point mini breadboard — Uno compatible

The Arduino Prototype Shield is the perfect companion for building and testing circuits directly on top of your Arduino Uno. It comes with a 170-point mini breadboard that snaps onto the prototyping area, keeping your project neat and compact. Colour-coded pin headers — red for power, black for GND, green for digital, and blue for analog — make wiring intuitive at a glance. Whether you're prototyping a sensor circuit, testing an LED array, or experimenting with ICs, this shield keeps everything tidy and accessible.

Key Features:

• 170-point mini breadboard — included, mounts directly on the shield for solderless prototyping
• DIP prototyping area — suitable for through-hole ICs and discrete components
• SOIC prototyping area — above the USB jack, supports up to 14-pin SOIC chips (narrow, medium, or wide package)
• Colour-coded pin headers — red (power), black (GND), green (digital), blue (analog) for instant pin identification
• Onboard reset button — accessible reset without removing the shield, simplifying debugging
• Arduino Uno compatible — fits standard Arduino Uno R3 and compatible boards
• Solder pads for permanent component mounting alongside breadboard area

Specifications:

• Compatible board: Arduino Uno R3 and compatible
• Breadboard points: 170 (mini breadboard, included)
• SOIC support: up to 14-pin SOIC (narrow / medium / wide)
• Pin header colour coding: red, black, green, blue
• Reset button: yes (onboard)

Applications:

• Arduino project prototyping and circuit testing
• Sensor and module integration experiments
• Educational electronics and STEM projects
• IC testing and evaluation
• Rapid hardware prototyping before PCB design
