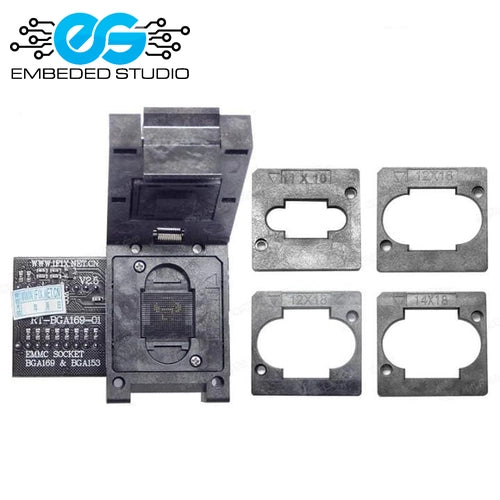

BGA169 & BGA153 eMMC socket adapter for RT809H and ISP programmers
The BGA169/BGA153 eMMC Socket Adapter supports two of the most common eMMC package types in a single adapter, allowing you to read and write eMMC flash memory chips without soldering. Compatible with the RT809H universal programmer and other ISP-based eMMC tools, it is an essential accessory for mobile phone repair technicians, data recovery specialists, and automotive electronics engineers.
BGA169 and BGA153 are the dominant eMMC package footprints found in Android smartphones, tablets, set-top boxes, and automotive infotainment systems. This dual-compatible adapter gives you non-destructive chip access for both package types in one tool.
Key Features:
- Supports BGA169 eMMC chips (11.5mm × 13mm, 169-ball grid array)
- Supports BGA153 eMMC chips (11.5mm × 13mm, 153-ball grid array)
- Spring-pin / ZIF socket design for reliable, repeatable contact
- Compatible with RT809H EMMC-NAND Flash Programmer
- Compatible with other ISP programmers supporting BGA169/BGA153 pinout
- No soldering required — non-destructive chip access
- Durable construction for repeated workshop use
Compatible Programmers:
- RT809H EMMC-NAND Flash Programmer (primary)
- Other ISP programmers with BGA169/BGA153 adapter support
Common eMMC Chips Supported:
- BGA169: Samsung KLMxGxxxx (eMMC 5.0/5.1), Hynix H26M, Micron MTFC, SanDisk SDINBDG4
- BGA153: Samsung KMxxx series (eMMC 4.5), Hynix H26M (older variants), Toshiba THGBM series
Applications:
- Smartphone and tablet eMMC data recovery
- Android device IMEI repair and firmware flashing
- Automotive infotainment eMMC read/write
- eMMC chip-off forensic data extraction
- ISP programming without BGA rework station
Note: Verify your programmer supports BGA169 and BGA153 pinouts before purchase. Sold as adapter only — programmer sold separately.
