BGA64 NAND Flash socket adapter for RT809H and ISP programmers

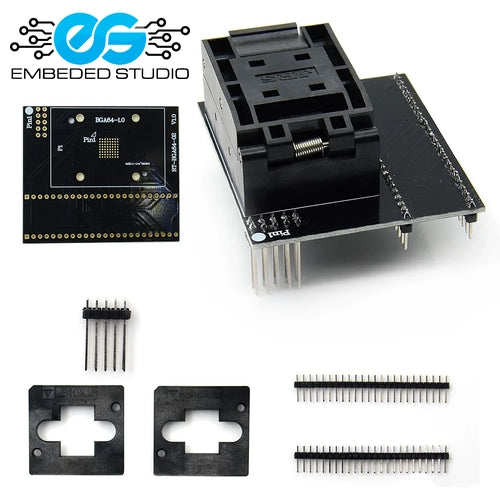

The BGA64 NAND Flash Socket Adapter is a precision test socket designed for reading and writing NAND flash memory chips in the BGA64 package without soldering. Compatible with the RT809H universal programmer and other ISP-based NAND programming tools, it is an essential accessory for mobile phone repair technicians, data recovery specialists, and automotive electronics engineers working with BGA64 NAND devices.
BGA64 is a common NAND flash package found in feature phones, older Android smartphones, set-top boxes, GPS devices, and automotive modules. This adapter provides reliable, non-destructive chip access for both in-circuit and out-of-circuit programming.
Key Features:
- Supports BGA64 NAND flash memory chips (9mm × 11mm footprint)
- Spring-pin socket design for reliable, repeatable contact
- Compatible with RT809H EMMC-NAND Flash Programmer
- Compatible with other ISP programmers supporting BGA64 NAND pinout
- No soldering required — non-destructive chip access
- Durable construction for repeated workshop use
Compatible Programmers:
- RT809H EMMC-NAND Flash Programmer (primary)
- Other ISP programmers with BGA64 NAND adapter support
Common NAND Chips Supported (BGA64 package):
- Samsung K9xxG08Uxx series (SLC NAND)
- Hynix H27Uxx series
- Micron MT29Fxx series
- Toshiba TC58NVGxx series
- Spansion / Cypress S34MLxx series
Applications:
- Feature phone and older Android device data recovery
- NAND flash firmware read/write and backup
- Automotive module NAND programming
- GPS and set-top box flash repair
- NAND chip-off forensic data extraction
- ISP programming without BGA rework station
Note: Verify your programmer supports the BGA64 NAND pinout before purchase. Sold as adapter only — programmer sold separately.
