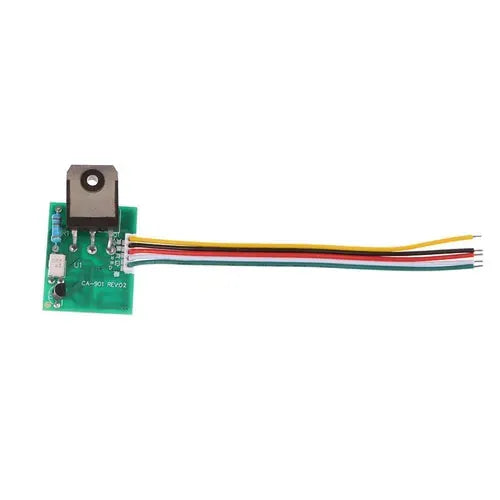

CA-901 LCD TV switching power supply module — 12V/24V output, flyback SMPS, universal replacement
The CA-901 is a compact, high-performance LCD TV switching power supply (SMPS) module designed as a universal replacement for faulty or failed power supply boards in LCD televisions up to 46 inches. Built around a flyback topology with TL431-based DC voltage feedback, it delivers stable, well-regulated 12V or 24V output — selectable via a simple pad connection — making it adaptable to a wide range of LCD TV power requirements.
Its small form factor, wide input voltage range, and plug-and-play design make it ideal for fast LCD TV repair and maintenance, eliminating the need to source expensive OEM replacement boards. Engineers and repair technicians can use it as a drop-in replacement or as a standalone regulated power module in custom electronics projects.
Key Specifications:
- Model: CA-901
- Topology: Flyback switching power supply (SMPS)
- Output voltage: 12V or 24V (selectable via pad connection)
- Voltage regulation: DC sampling with TL431 feedback
- Compatible TV size: Up to 46-inch LCD TVs
- Input: AC mains (wide voltage range)
- Size: Compact module form factor
- Installation: Easy, direct replacement
Key Features:
- 12V / 24V selectable output — connect to the corresponding pad to select the required output voltage
- TL431 voltage feedback — precise DC sampling for excellent voltage regulation and stability
- Flyback topology — efficient, isolated power conversion suitable for LCD TV supply rails
- Universal replacement — fits most LCD TVs up to 46" with standard 12V or 24V supply requirements
- Compact and lightweight — easy to install in tight TV chassis spaces
- Wide input voltage range — compatible with Pakistani 220V AC mains
Applications:
- LCD TV power supply board repair and replacement (up to 46")
- Fast maintenance replacement for failed switching supplies
- DIY regulated 12V/24V power supply for electronics projects
- Bench power module for LED driver and display testing
Note: Connect the output pad to the 12V or 24V position before powering on. Refer to the CA-901 module schematic for correct wiring to your TV's power connector. Ensure adequate ventilation during operation.
