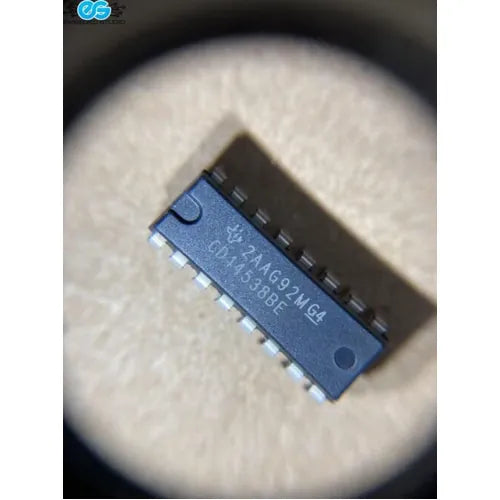

CD14538BE DIP

CD14538BE DIP is a CMOS dual precision monostable multivibrator. It provides stable refrigerable/resettable one-shot operation for any fixed-voltage timing application. An external resistor and an external capacitor control the timing and accuracy for the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q\ terminals. The time delay from trigger input to output transition (trigger propagation delay) and the time delay from reset input to output transition (reset propagation delay) are independent of RX and CX. Precision control of output pulse widths is achieved through linear CMOS techniques. Leading-edge-triggering (+TR) and trailing-edge-triggering (-TR) inputs are provided for triggering from either edge of an input pulse. Application includes pulse delay and timing and pulse shaping.
