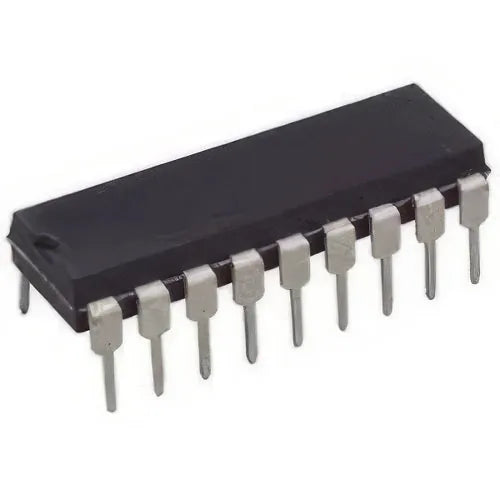

DAC0800 8-Bit Digital to Analog Converter IC

DAC0800 8-Bit Digital to Analog Converter IC

The DAC0800 is a high-speed 8-bit multiplying DAC with 100ns settling time. It operates from a dual supply and provides complementary current outputs, making it suitable for high-speed signal generation and conversion applications.

Key Features

• 8-bit resolution DAC
• Settling time: 100ns
• Complementary current outputs
• Dual supply: ±4.5V to ±18V
• 16-pin DIP package
• TTL and CMOS compatible inputs

Applications

• High-speed waveform generation
• Signal processing and synthesis
• Servo and motor control
• 8051 and microprocessor DAC projects
