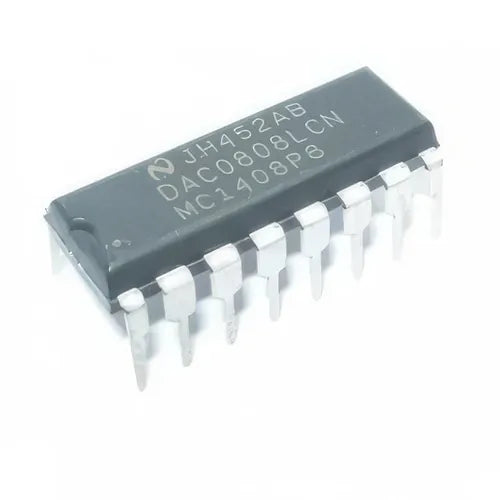

DAC0808 8-Bit Digital to Analog Converter IC

DAC0808 8-Bit Digital to Analog Converter IC

The DAC0808 is a fast 8-bit multiplying DAC with a settling time of 150ns, making it suitable for high-speed waveform generation and signal processing applications. It requires a dual supply (±5V to ±15V) and provides current output.

Key Features

• 8-bit resolution DAC
• Fast settling time: 150ns
• Current output (requires external op-amp for voltage)
• Dual supply: ±5V to ±15V
• 16-pin DIP package
• TTL compatible inputs

Applications

• High-speed waveform generation
• Signal processing and synthesis
• 8051 and microprocessor DAC projects
• Audio DAC applications
