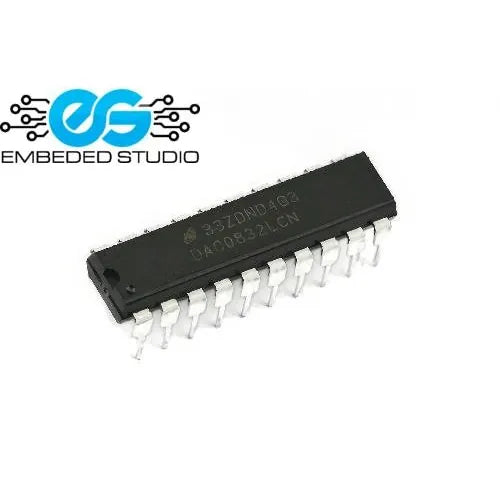

DAC0832 8-Bit Digital to Analog Converter IC

DAC0832 8-Bit Digital to Analog Converter IC

The DAC0832 is an 8-bit multiplying DAC from National Semiconductor, featuring a double-buffered input register and compatibility with most microprocessor buses. It provides a current output that can be converted to voltage with an external op-amp.

Key Features

• 8-bit resolution DAC
• Double-buffered input registers
• Current output (requires external op-amp for voltage)
• Compatible with 8080/8085/Z80 microprocessor buses
• Single supply: 5V – 15V
• 20-pin DIP package
• Settling time: 1µs

Applications

• Waveform generation
• Process control and automation
• 8051 and microprocessor DAC projects
• Audio and signal generation
