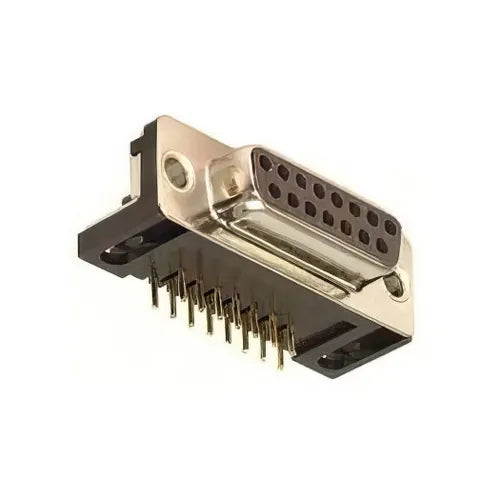

DB15 female connector right angle — 15-pin D-sub, PCB mount, solder type

The DB15 female right-angle connector is a 15-pin D-sub (DE-15) socket designed for direct PCB mounting. The 90° right-angle orientation routes the cable parallel to the PCB surface, making it ideal for panel-mount designs, enclosures with limited depth, and space-constrained PCB layouts. Solder-type termination provides a permanent, low-resistance connection to the board.

Key Specifications:

• Type: DB15 female (socket / receptacle)
• Number of pins: 15 (2-row D-sub, DE-15)
• Orientation: Right angle (90°) — cable exits parallel to PCB
• Termination: Solder type (through-hole PCB pins)
• Mounting: PCB through-hole, right angle
• Shell: Metal, standard D-sub shell size 1
• Contact material: Copper alloy, gold or tin plated
• Mating connector: DB15 male (DE-15 plug)

Key Features:

• Right-angle PCB mount — cable exits horizontally, ideal for rear-panel or edge-mount applications
• Solder termination — reliable, permanent connection directly to PCB pads
• Standard DE-15 footprint — compatible with standard DB15 PCB footprints and mating plugs
• Metal shell — provides EMI shielding and mechanical strength
• Mounting ears/screws for panel or chassis fixing (where applicable)

Applications:

• VGA monitor interface (legacy 15-pin VGA port)
• Joystick and game controller ports
• Industrial control and automation I/O panels
• Serial and analog signal interfaces
• Custom PCB designs requiring a D-sub 15-pin female port
• Test and measurement equipment front/rear panels

Note: This is a right-angle (horizontal) PCB-mount connector. For vertical (straight) PCB mount or cable-mount variants, please check our other DB15 listings.
