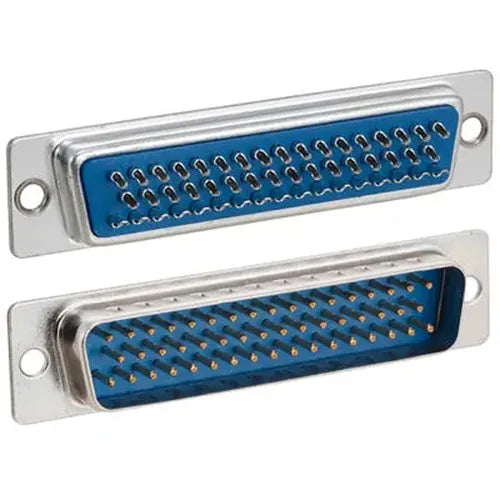

DB50 male connector — 50-pin D-sub, crimp type, high-density

The DB50 male connector is a 50-pin high-density D-sub connector conforming to commercial industry standards. The crimp-style termination is preferred by DIY users and professional assemblers alike for its reliability and ease of field assembly — no soldering required. Compatible with any standard male D-sub crimp contact, including the CPM family. Suitable for industrial control panels, data acquisition systems, CNC machines, and test equipment wiring.

Key Specifications:

• Type: DB50 male (plug)
• Number of pins: 50
• Connector series: High-density D-sub (DB series)
• Termination: Crimp style
• Shell size: DB50 (size 1)
• Contact compatibility: Standard male D-sub crimp contacts (CPM family)
• Mounting: Cable mount
• Industry standard: Commercial D-sub specification

Key Features:

• Crimp termination — no soldering required, faster assembly
• High-density 50-pin configuration in compact D-sub shell
• Compatible with standard DB50 female connectors and backshell covers
• Insertion/extraction tool recommended: TDT or TDTPRO

Applications:

• Industrial control and automation wiring
• Data acquisition (DAQ) systems
• CNC machine I/O connections
• Test and measurement equipment
• SCSI and legacy parallel interface cables

Note: Use with a DB50 backshell cover (sold separately) for strain relief and connector protection in cable-mount applications.
