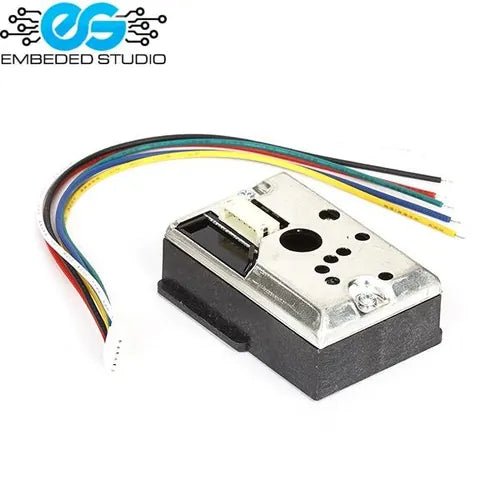

GP2Y1010AU0F Optical Dust Sensor Module — PM2.5 Air Quality
Regular price
Rs.1,250.00
Sale price:
Rs.1,250.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Out of stock
GP2Y1010AU0F Optical Dust Sensor Module — Compact PM2.5 Air Quality Sensor
The GP2Y1010AU0F is a compact optical dust sensor from Sharp that detects airborne dust and smoke particles using an infrared LED and phototransistor. It outputs an analog voltage proportional to dust density, making it ideal for air quality monitoring, air purifiers, and HVAC systems in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| IC / Sensor | Sharp GP2Y1010AU0F |
| Detection Target | Airborne dust, smoke, PM2.5 particles |
| Output Type | Analog voltage |
| Supply Voltage | 5V DC |
| LED Pulse Duration | 0.32ms (requires external LED drive circuit) |
| Sensitivity | 0.5V per 0.1mg/m³ |
| Min. Detectable Particle Size | ~0.8μm |
| Operating Temperature | -10°C to +65°C |
| Interface | 6-pin connector (analog output + LED control) |
Key Features
- Optical dust detection using IR LED and phototransistor
- Analog output proportional to dust concentration
- Detects particles as small as 0.8μm
- Compact and lightweight design
- Compatible with Arduino, ESP32, and any ADC-equipped MCU
- Widely used in commercial air purifiers
Applications
- Indoor air quality monitoring
- Air purifier dust detection and control
- HVAC system air quality sensing
- Smoke and haze detection
- DIY PM2.5 air quality meters
Buy GP2Y1010AU0F Dust Sensor Module at the best price from Embeded Studio.
