Fire Flame Sensor Module

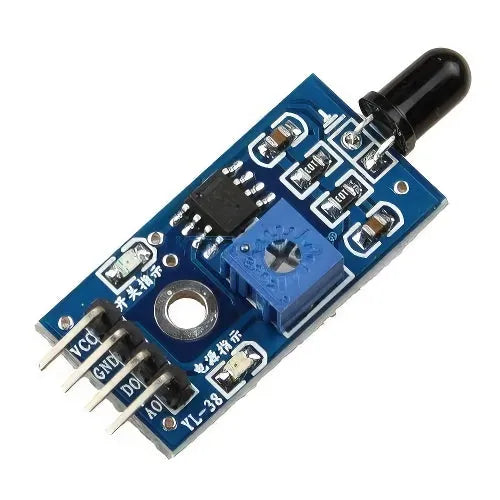

Fire Flame Sensor Module — Arduino Compatible

The Fire Flame Sensor Module detects flames and infrared light sources in the 760–1100nm wavelength range. Based on the YG1006 NPN silicon phototransistor and LM393 comparator, it provides both digital and analog outputs with adjustable sensitivity via potentiometer.

Key Features

• Detection wavelength: 760nm – 1100nm
• Detection range: up to ~0.8m for small flames
• Detection angle: ~60 degrees
• Digital output (D0) and analog output (A0)
• LM393 comparator with adjustable sensitivity potentiometer
• Signal LED indicator on flame detection
• D0 goes LOW when flame detected

Applications

• Firefighting robots
• Fire alarm and safety systems
• Flame detection automation
• Arduino and ESP32 safety projects
