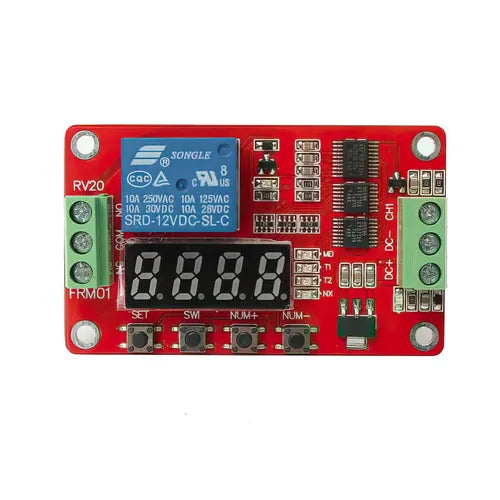

FRM01 12V Timer Kit
FRM01 12V Timer Kit Product Description
Increase the supply anti-reverse function, and do not take the wrong power supply as a damaged module.
The use of top-quality high-voltage power supply modules, and discrete power supply before replacing the system more stable and reliable.
Increased 0.1 seconds timing, timing accuracy from the previous 0.1 seconds, upgrade to 0.01 seconds.
Increase automatic power saving feature, which users can independently set.
FRM01 12V Timer Kit Specifications:
Operating voltage: DC 12V.
Working current: 12V module is less than 50mA (relay action not less than 15mA, turn off the display less than 3mA).
Operating temperature: Recommended -30 ℃ -70 ℃ (the limits of -40 ℃ -80 ℃).
load capacity:
Normally open relay port maximum load capacity: DC 0-30V / 10A, AC 0-250V / 10A;
Relay NC port maximum load capacity: DC 0-28V / 10A, AC 0-125V / 10A.
Size: 66mm * 41mm * 20mm (L * W * H)
Package includes :
1 x Relay Module
