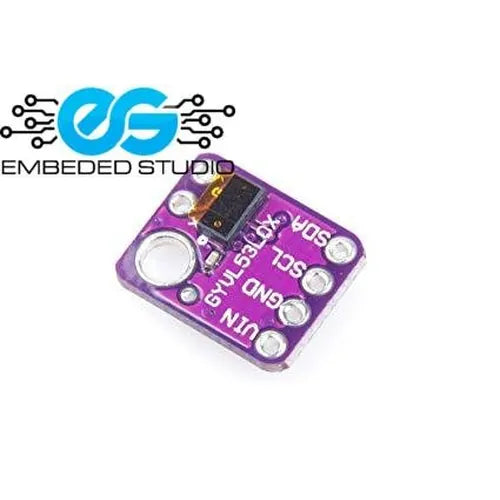

GY-530 VL53L0X ToF Laser Distance Sensor Module — I2C
Regular price
Rs.400.00
Sale price:
Rs.400.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
GY-530 VL53L0X ToF Laser Distance Sensor Module — I2C
The GY-530 is based on the ST VL53L0X Time-of-Flight (ToF) ranging sensor — the most advanced compact distance sensor available for embedded projects. Unlike ultrasonic sensors, it uses a 940nm invisible laser to measure distance with high accuracy regardless of target color or reflectivity. Measure up to 2 meters in under 30ms over a simple I2C interface, making it ideal for robotics, gesture detection, and proximity sensing.
Technical Specifications
| Parameter | Value |
|---|---|
| IC | ST VL53L0X |
| Supply Voltage | 3.3V – 5V DC (onboard regulator) |
| Interface | I2C |
| I2C Address | 0x29 (default, programmable) |
| Measuring Range | Up to 2000mm (2m) in dark conditions |
| Accuracy | ±3% typical |
| Measurement Time | ~30ms (default mode) |
| Laser Wavelength | 940nm (invisible, Class 1 eye-safe) |
| Operating Temperature | -20°C to +70°C |
| Dimensions | ~14mm × 14mm |
Pinout
| Pin | Name | Description |
|---|---|---|
| VCC | Power | 3.3V or 5V Supply |
| GND | Ground | Ground |
| SCL | Clock | I2C Clock |
| SDA | Data | I2C Data |
| XSHUT | Shutdown | Active LOW shutdown pin (optional) |
| GPIO1 | Interrupt | Data ready interrupt output (optional) |
Key Features
- Time-of-Flight laser ranging — not affected by target color or reflectivity
- Up to 2m range with ~30ms measurement time
- Class 1 eye-safe 940nm laser — safe for all applications
- I2C interface with programmable address — use multiple sensors on one bus
- Onboard 3.3V regulator — works with both 3.3V and 5V systems
- Compatible with Arduino, ESP32, STM32, Raspberry Pi
Applications
- Obstacle detection and avoidance in robotics
- Gesture and proximity detection
- Drone altitude hold and landing assist
- People counting and presence detection
- Liquid level measurement in tanks
