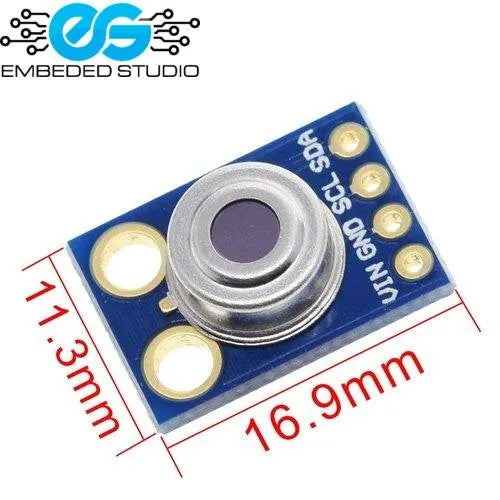

GY-906 MLX90614 Infrared Temperature Sensor Module — Non-Contact I2C
Regular price
Rs.1,350.00
Sale price:
Rs.1,350.00
Regular price:
Rs.1,500.00
Sale:
-10%
Shipping calculated at checkout.
In stock, ready to ship
GY-906 MLX90614 Infrared Temperature Sensor Module — Non-Contact
The GY-906 module is based on the Melexis MLX90614 infrared thermometer IC, enabling accurate non-contact temperature measurement without touching the target surface. Simply point it at an object and read the temperature instantly over I2C — perfect for fever detection, industrial monitoring, HVAC systems, and smart home automation projects with Arduino or ESP32.
Technical Specifications
| Parameter | Value |
|---|---|
| IC | Melexis MLX90614ESF |
| Supply Voltage | 3.3V – 5V DC |
| Interface | I2C (SMBus compatible) |
| I2C Address | 0x5A (default) |
| Object Temperature Range | -70°C to +380°C |
| Ambient Temperature Range | -40°C to +125°C |
| Accuracy | ±0.5°C (0–50°C range) |
| Resolution | 0.02°C |
| Field of View | 90° |
| Operating Temperature | -40°C to +85°C |
Pinout
| Pin | Name | Description |
|---|---|---|
| VIN | VCC | Supply Voltage (3.3V or 5V) |
| GND | GND | Ground |
| SCL | Clock | I2C Clock Line |
| SDA | Data | I2C Data Line |
Key Features
- Non-contact temperature measurement — no physical touch required
- Ultra-wide object temperature range: -70°C to +380°C
- High resolution: 0.02°C — ideal for precision applications
- I2C interface — easy integration with Arduino, ESP32, STM32, Raspberry Pi
- Built-in 17-bit ADC — no external ADC needed
- Low power consumption — suitable for battery-powered designs
Applications
- Non-contact fever / body temperature detection
- Industrial process temperature monitoring
- HVAC and climate control systems
- Fire detection and prevention
- Smart home automation
- Food safety temperature monitoring
