VendorMy Store
SKU:HIP4082IPZ-IC

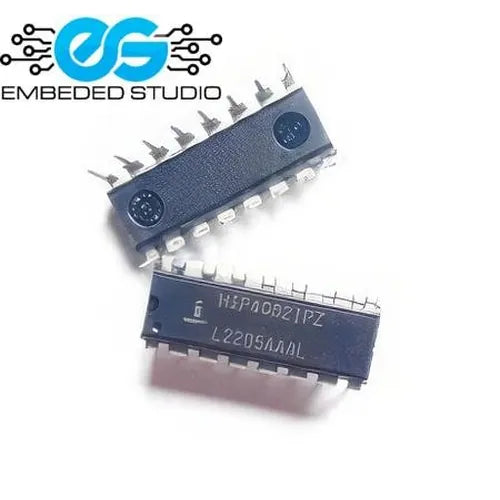

HIP4082IPZ Full-Bridge MOSFET Driver IC DIP
Regular price
Rs.750.00
Sale price:
Rs.750.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
HIP4082IPZ — 80V Full-Bridge N-Channel MOSFET Driver (DIP Package)
The HIP4082IPZ is the through-hole DIP version of the high-performance 80V full-bridge N-channel MOSFET driver IC from Renesas (formerly Intersil). Designed to drive all four switches of a full H-bridge using N-channel MOSFETs, it features bootstrap high-side drive, programmable dead time, and shoot-through protection — making it ideal for prototyping and breadboard-friendly DC motor drives, solenoid drivers, and switching power supplies in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | HIP4082IPZ |
| Type | Full-Bridge MOSFET Driver |
| Supply Voltage (V₂CC) | Up to 80V |
| Gate Drive Supply | 9V – 15V |
| Output Current (Source/Sink) | 1A / 2A |
| Dead Time | Programmable via external resistor |
| Shoot-Through Protection | Yes (programmable dead time) |
| Package | DIP-16 (through-hole) |
Key Features
- Drives all 4 N-channel MOSFETs in a full H-bridge — no P-channel MOSFETs needed
- Bootstrap high-side drive — no isolated supply required
- Programmable dead time — prevents shoot-through with a single external resistor
- 80V supply voltage — suitable for 12V–48V motor drive systems
- DIP-16 package — breadboard and prototype friendly
Applications
- DC motor H-bridge drives
- Solenoid and relay drivers
- Bidirectional DC-DC converters
- Class-D audio amplifiers
- Industrial power electronics prototyping
Buy HIP4082IPZ Full-Bridge MOSFET Driver IC at the best price from Embeded Studio.
