SKU:HY4008P

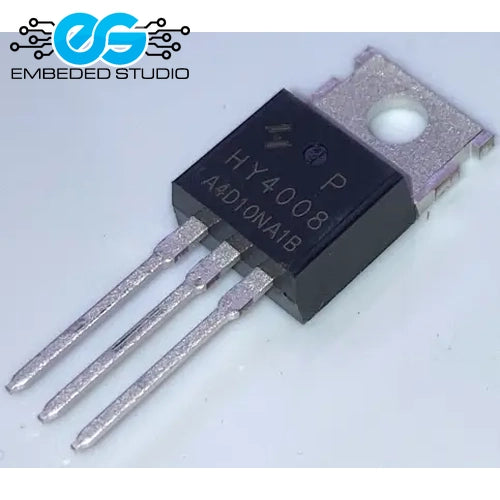

HY4008P P-Channel MOSFET | 40V 120A TO-220AB
Regular price
Rs.220.00
Sale price:
Rs.220.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
The HY4008P is a high-performance P-Channel Enhancement Mode Power MOSFET by Sinopower (Wuxi Huayi Semiconductor), designed for high-current switching applications where a P-channel device is required. In the standard TO-220AB through-hole package, it is widely used as the high-side switch in H-bridge motor drivers, load switches, and complementary MOSFET pairs alongside the HY4008W.
Key Specifications
- Part Number: HY4008P
- Manufacturer: Sinopower / Wuxi Huayi Semiconductor
- Package: TO-220AB (Through-Hole)
- Type: P-Channel Enhancement Mode MOSFET
- Drain-Source Voltage (Vds): -40V
- Continuous Drain Current (Id): -120A
- On-Resistance (Rds(on)): ≤5 mΩ @ Vgs=-10V
- Gate-Source Voltage (Vgs): ±20V
- Low gate charge for fast switching
- Avalanche energy rated
- 175°C maximum junction temperature
Applications
- High-side load switching
- H-bridge and full-bridge motor drives
- Complementary pair with HY4008W (N-Channel)
- Battery management systems (BMS)
- DC-DC converters and power management
A robust P-channel MOSFET ideal for engineers building high-current motor control and power switching circuits in Pakistan and beyond.
