IR2103 Half-Bridge Gate Driver IC DIP-8 / IR2103S SOP-8
Regular price
Rs.250.00
Sale price:
Rs.250.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Version:
IR2103 DIP
In stock, ready to ship

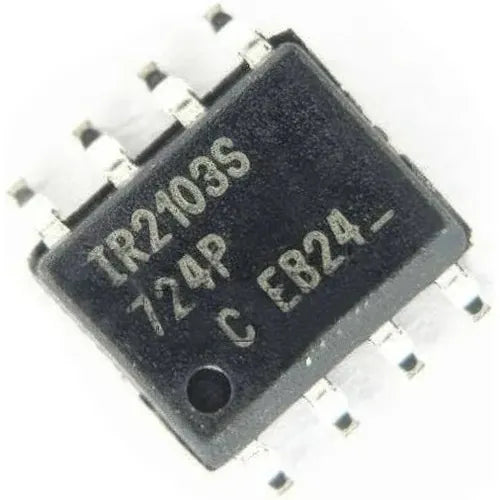

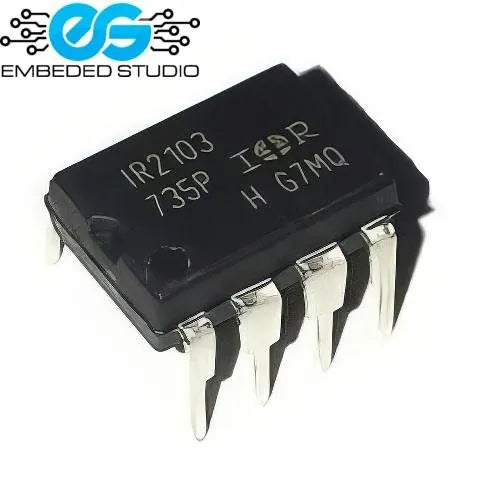

IR2103 / IR2103S — Half-Bridge Gate Driver IC with Enable
The IR2103 (DIP-8) and IR2103S (SOP-8) are half-bridge gate driver ICs from Infineon (formerly International Rectifier), featuring a built-in enable input for hardware shutdown control. With a 600V high-side floating channel, bootstrap operation, and matched propagation delays, the IR2103 is ideal for motor drives, inverters, and power converters where fault protection and enable control are required in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR2103 (DIP-8) / IR2103S (SOP-8) |
| Type | Half-Bridge Gate Driver with Enable |
| High-Side Voltage (V₂offset) | Up to 600V |
| Gate Drive Supply (V₂CC) | 10V – 20V |
| Output Current (Source/Sink) | 210mA / 420mA |
| Propagation Delay | Matched (typ. 130ns) |
| Input Logic | HIN + LIN + SD (enable/shutdown) |
| Shoot-Through Protection | Via matched delays |
| Packages | DIP-8 (IR2103), SOP-8 (IR2103S) |
Key Features
- 600V high-side floating channel — drives high-side N-channel MOSFETs/IGBTs
- SD (shutdown/enable) input — hardware fault protection and enable control
- Higher output current than IR2101: 210mA source / 420mA sink
- Matched propagation delays for precise switching timing
- Bootstrap operation — no isolated power supply needed
- Available in DIP-8 (through-hole) and SOP-8 (SMD) packages
Applications
- Half-bridge and full-bridge motor drives
- 3-phase inverters (with 3 ICs)
- DC-DC converters with enable control
- BLDC motor controllers with fault protection
- UPS and solar inverter systems
Buy IR2103 / IR2103S Half-Bridge Gate Driver IC at the best price from Embeded Studio.
