IR2106 Half-Bridge Gate Driver IC DIP-8 / IR2106S SOP-8
Regular price
Rs.200.00
Sale price:
Rs.200.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Version:
IR2106 DIP
In stock, ready to ship

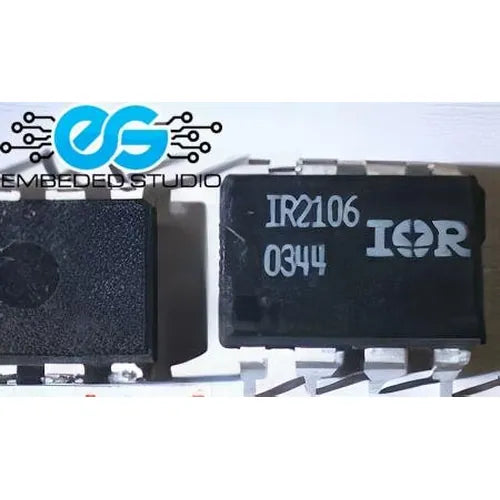

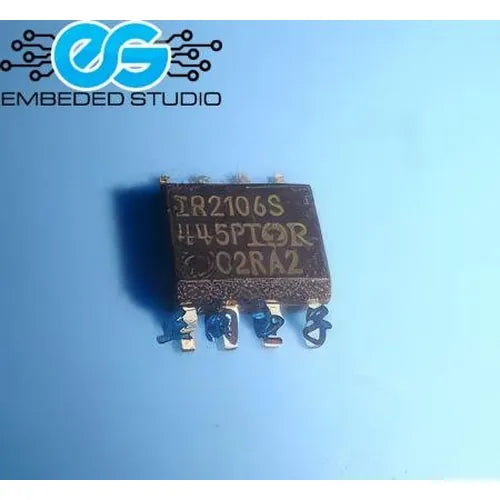

IR2106 / IR2106S — Half-Bridge Gate Driver IC with Shutdown
The IR2106 (DIP-8) and IR2106S (SOP-8) are high-current half-bridge gate driver ICs from Infineon (formerly International Rectifier). Featuring a 600V high-side floating channel, a dedicated SD (shutdown) pin, and high output drive capability, the IR2106 is designed for demanding motor drive and inverter applications where fast switching and reliable fault protection are critical in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR2106 (DIP-8) / IR2106S (SOP-8) |
| Type | Half-Bridge Gate Driver with Shutdown |
| High-Side Voltage (V₂offset) | Up to 600V |
| Gate Drive Supply (V₂CC) | 10V – 20V |
| Output Current (Source/Sink) | 290mA / 600mA |
| Propagation Delay | Matched (typ. 130ns) |
| Input Logic | HIN + LIN + SD (shutdown) |
| Shoot-Through Protection | Via matched delays |
| Packages | DIP-8 (IR2106), SOP-8 (IR2106S) |
Key Features
- 600V high-side floating channel — drives high-side N-channel MOSFETs/IGBTs
- High output current: 290mA source / 600mA sink — drives large gate capacitances fast
- SD (shutdown) input for hardware fault protection
- Matched propagation delays for precise switching timing
- Bootstrap operation — no isolated power supply needed
- Available in DIP-8 (through-hole) and SOP-8 (SMD) packages
Applications
- High-power half-bridge and full-bridge motor drives
- 3-phase inverters for BLDC and AC motors
- High-frequency DC-DC converters
- Industrial inverters and UPS systems
- Solar inverters and power factor correction
Buy IR2106 / IR2106S Half-Bridge Gate Driver IC at the best price from Embeded Studio.
