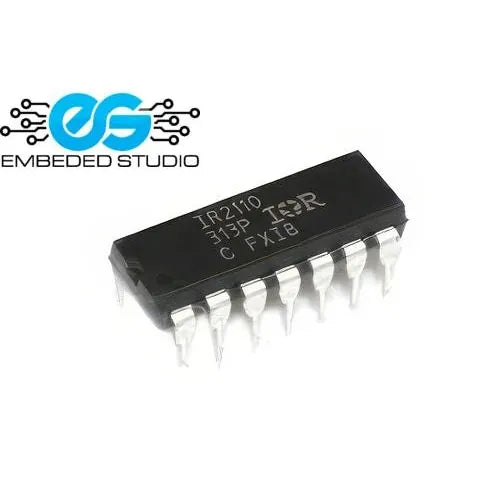

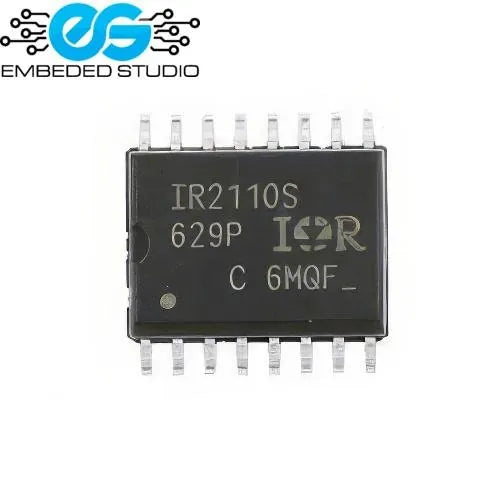

IR2110 / IR2110S — High & Low Side Gate Driver IC
The IR2110 (DIP-14) and IR2110S (SOP-16) are the industry-standard high and low side gate driver ICs from Infineon (formerly International Rectifier). With independent high-side and low-side inputs, a 600V floating channel, and high output drive capability, the IR2110 is the benchmark gate driver for 3-phase inverters, motor drives, and high-power switching converters in Pakistan. Its versatility and reliability have made it a staple in power electronics design for decades.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR2110 (DIP-14) / IR2110S (SOP-16) |
| Type | High & Low Side Gate Driver |
| High-Side Voltage (V₂offset) | Up to 500V |
| Gate Drive Supply (V₂CC) | 10V – 20V |
| Output Current (Source/Sink) | 2A / 2A |
| Propagation Delay | Matched (typ. 120ns) |
| Input Logic | HIN + LIN (independent) + SD |
| Shoot-Through Protection | Via matched delays (external dead time) |
| Packages | DIP-14 (IR2110), SOP-16 (IR2110S) |
Key Features
- 500V high-side floating channel — drives high-side N-channel MOSFETs/IGBTs
- High output current: 2A source / 2A sink — drives large gate capacitances at high frequency
- Independent HIN and LIN inputs for flexible dead-time control
- SD (shutdown) input for hardware fault protection
- Bootstrap operation — no isolated power supply needed
- Available in DIP-14 (through-hole) and SOP-16 (SMD) packages
Applications
- 3-phase inverters for AC and BLDC motors
- High-power half-bridge and full-bridge converters
- Industrial motor drives and servo controllers
- Solar inverters and UPS systems
- High-frequency resonant converters
Buy IR2110 / IR2110S Gate Driver IC at the best price from Embeded Studio.
