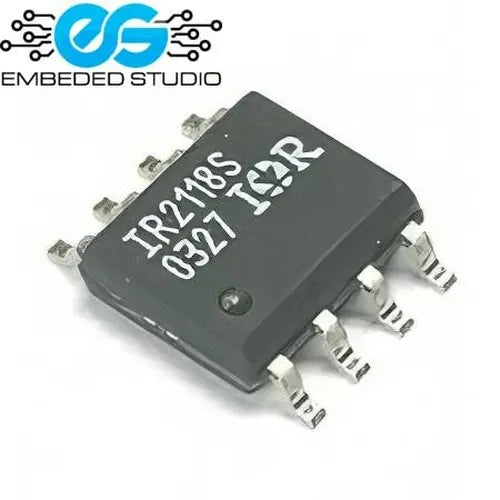

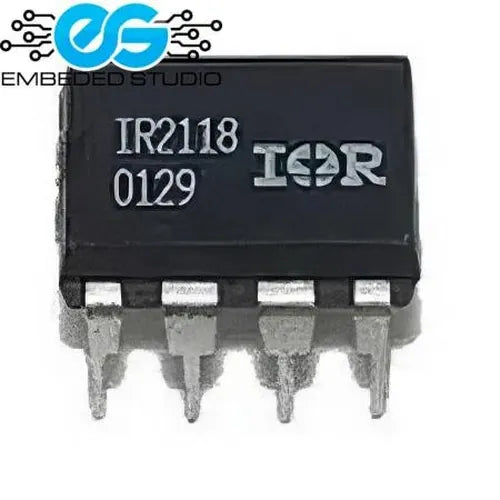

IR2118 High-Side Gate Driver IC DIP-8 / IR2118S SOP-8
Regular price
Rs.150.00
Sale price:
Rs.150.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Version:
IR2118 DIP
In stock, ready to ship
IR2118 / IR2118S — High-Side Gate Driver IC
The IR2118 (DIP-8) and IR2118S (SOP-8) are single-channel high-side gate driver ICs from Infineon (formerly International Rectifier). Designed to drive a single N-channel MOSFET or IGBT on the high side of a half-bridge, the IR2118 uses bootstrap operation and features a 600V floating channel, making it ideal for simple high-side switch applications in motor drives, inverters, and power supplies in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR2118 (DIP-8) / IR2118S (SOP-8) |
| Type | Single High-Side Gate Driver |
| High-Side Voltage (V₂offset) | Up to 600V |
| Gate Drive Supply (V₂CC) | 10V – 20V |
| Output Current (Source/Sink) | 200mA / 420mA |
| Propagation Delay | typ. 120ns |
| Input Logic | Single IN pin |
| Packages | DIP-8 (IR2118), SOP-8 (IR2118S) |
Key Features
- 600V high-side floating channel — drives high-side N-channel MOSFETs/IGBTs
- Single input pin — simple interface for high-side switch control
- Bootstrap operation — no isolated power supply needed
- 200mA source / 420mA sink output current
- Available in DIP-8 and SOP-8 packages
Applications
- High-side MOSFET/IGBT switch drivers
- Synchronous rectifier control
- Motor drive high-side switches
- Boost converter high-side drivers
- Industrial power electronics
Buy IR2118 / IR2118S High-Side Gate Driver IC at the best price from Embeded Studio.
