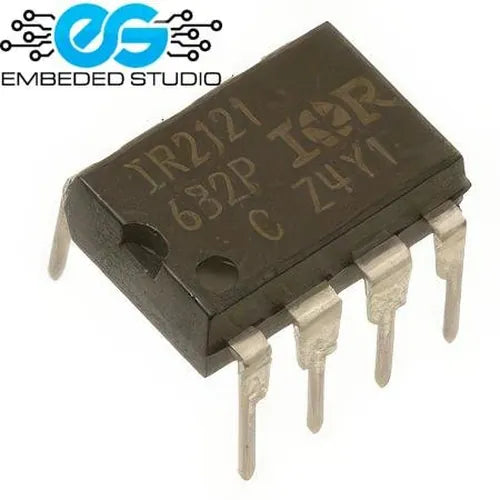

IR2121 Single MOSFET Gate Driver IC DIP-8
Regular price
Rs.180.00
Sale price:
Rs.180.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
IR2121 — Single MOSFET Gate Driver with Overcurrent Protection
The IR2121 (DIP-8) is a single-channel MOSFET gate driver IC from Infineon (formerly International Rectifier), featuring built-in overcurrent protection via a current sense input. It drives a single N-channel MOSFET with up to 1A peak output current and automatically shuts down the gate drive upon overcurrent detection — making it ideal for protected motor drives, solenoid drivers, and power switches in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR2121 |
| Type | Single MOSFET Gate Driver with OCP |
| Supply Voltage (V₂CC) | 10V – 20V |
| Peak Output Current | 1A source / 2A sink |
| Overcurrent Protection | Yes (via CS pin) |
| Fault Output | Yes (open drain) |
| Package | DIP-8 |
Key Features
- Built-in overcurrent protection — shuts down gate drive on fault
- Fault output pin — signals fault condition to MCU
- 1A source / 2A sink output current — drives medium-sized MOSFETs
- Simple single-input interface
- DIP-8 package — easy to prototype
Applications
- Protected MOSFET switch drivers
- DC motor drives with overcurrent protection
- Solenoid and relay drivers
- Power supply switches
- Industrial power electronics
Buy IR2121 Single MOSFET Gate Driver IC at the best price from Embeded Studio.
