SKU:IR21365S-IC

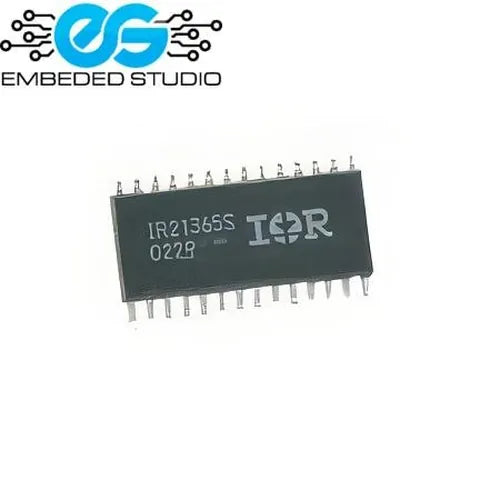

IR21365S 3-Phase IGBT Gate Driver IC SOP-28
Regular price
Rs.550.00
Sale price:
Rs.550.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
IR21365S — 3-Phase IGBT/MOSFET Gate Driver IC with Overcurrent Protection (SOP-28)
The IR21365S is an advanced 3-phase gate driver IC from Infineon (formerly International Rectifier), designed to drive all six switches of a 3-phase inverter bridge using N-channel IGBTs or MOSFETs. It includes integrated overcurrent protection (OCP) via desaturation detection, shoot-through interlock, and fault reporting — making it the preferred solution for protected 3-phase motor drives, solar inverters, and industrial power converters in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR21365S |
| Type | 3-Phase Gate Driver with OCP |
| High-Side Voltage (V₂offset) | Up to 600V |
| Gate Drive Supply (V₂CC) | 10V – 20V |
| Output Current (Source/Sink) | 250mA / 500mA per channel |
| Channels | 3 high-side + 3 low-side |
| Overcurrent Protection | Yes (desaturation detection) |
| Shoot-Through Protection | Yes (interlocking) |
| Fault Output | Yes |
| Package | SOP-28 |
Key Features
- Drives all 6 switches of a 3-phase bridge — complete inverter solution in one IC
- Integrated desaturation OCP — protects IGBTs from overcurrent damage
- 600V high-side floating channels — bootstrap operation
- Shoot-through interlock — prevents simultaneous high/low side conduction
- Fault output pin — signals fault to MCU
Applications
- Protected 3-phase AC motor drives (VFDs)
- 3-phase solar inverters
- UPS systems
- Industrial power converters
- BLDC motor controllers
Buy IR21365S 3-Phase Gate Driver IC at the best price from Embeded Studio.
