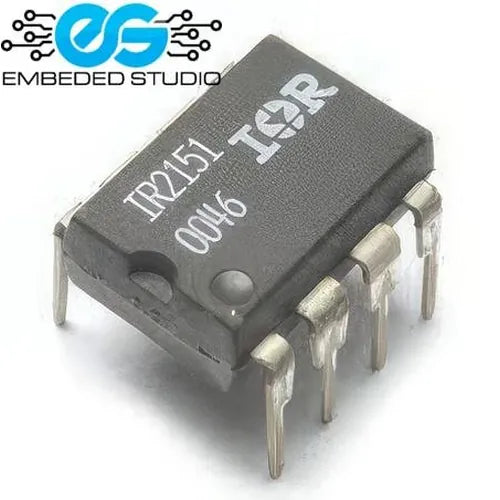

IR2151 Self-Oscillating Half-Bridge Driver IC DIP-8
Regular price
Rs.200.00
Sale price:
Rs.200.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
IR2151 — Self-Oscillating Half-Bridge Gate Driver IC
The IR2151 (DIP-8) is a self-oscillating half-bridge gate driver IC from Infineon (formerly International Rectifier). It integrates an internal oscillator, making it ideal for resonant converter topologies such as electronic ballasts, LLC converters, and induction heating circuits — without requiring an external PWM controller. A popular choice for DIY and industrial power electronics in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR2151 |
| Type | Self-Oscillating Half-Bridge Driver |
| High-Side Voltage (V₂offset) | Up to 600V |
| Gate Drive Supply (V₂CC) | 10V – 20V |
| Output Current (Source/Sink) | 200mA / 420mA |
| Oscillator | Internal (R-C programmable) |
| Duty Cycle | ~50% fixed |
| Package | DIP-8 |
Key Features
- Internal self-oscillating circuit — no external PWM controller needed
- Programmable frequency via external R-C network
- 600V high-side floating channel — bootstrap operation
- ~50% fixed duty cycle — ideal for resonant topologies
- DIP-8 package — easy to prototype
Applications
- Electronic fluorescent lamp ballasts
- LLC resonant converters
- Induction heating circuits
- Half-bridge inverters
- DIY power electronics projects
