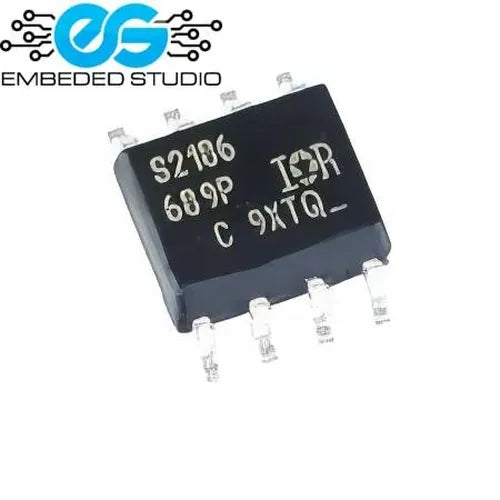

IR2186S Single Half-Bridge Gate Driver IC SOP-8
Regular price
Rs.375.00
Sale price:
Rs.375.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
IR2186S — Single Half-Bridge Gate Driver IC (SOP-8)
The IR2186S (SOP-8) is a single half-bridge gate driver IC from Infineon (formerly International Rectifier), designed to drive one high-side and one low-side N-channel MOSFET or IGBT. With a 600V floating high-side channel, bootstrap operation, and 1.9A/2.5A peak output current, the IR2186S is ideal for half-bridge inverters, motor drives, and switching power supplies in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IR2186S |
| Type | Single Half-Bridge Gate Driver |
| High-Side Voltage (V₂offset) | Up to 600V |
| Gate Drive Supply (V₂CC) | 10V – 20V |
| Output Current (Source/Sink) | 1.9A / 2.5A |
| Propagation Delay | typ. 80ns |
| Package | SOP-8 |
Key Features
- 600V high-side floating channel — bootstrap operation, no isolated supply needed
- 1.9A source / 2.5A sink — drives large MOSFET/IGBT gate capacitances
- Fast 80ns propagation delay — suitable for high-frequency switching
- Separate HIN and LIN inputs — flexible PWM control
- SOP-8 SMD package — compact PCB footprint
Applications
- Half-bridge inverters and motor drives
- Synchronous buck/boost converters
- Class-D audio amplifiers
- UPS and solar inverter half-bridge stages
- Industrial power electronics
Buy IR2186S Single Half-Bridge Gate Driver IC at the best price from Embeded Studio.
